Axle-Truck-Scales
Truck 2-Pads Axle Scale
UGX 250,000,000
UGX 30,000,000
Service Highlights
Wandegeya Showroom
Inspect the unit in person before you buy.
Nationwide Delivery
Fast dispatch to Kampala and upcountry destinations.
Calibration Support
Setup guidance and servicing for working environments.
Direct Expert Help
Phone and WhatsApp support for sizing and usage advice.
Technical Specifications
Product Name Truck 2-Pads Axle Scale
Product Name
Truck 2-Pads Axle Scale
Pad Capacity Typically up to 20,000 kg per pad (configurable)
Pad Capacity
Typically up to 20,000 kg per pad (configurable)
Total System Capacity Up to 40,000 kg (dependent on configuration)
Total System Capacity
Up to 40,000 kg (dependent on configuration)
Accuracy ±0.5 % – ±1 % of reading (application dependent)
Accuracy
±0.5 % – ±1 % of reading (application dependent)
Load Cells Sealed high-precision alloy steel
Load Cells
Sealed high-precision alloy steel
Display Unit LCD/LED with backlight
Display Unit
LCD/LED with backlight
Units of Measure kg / lb selectable
Units of Measure
kg / lb selectable
Power Supply Rechargeable battery + AC adapter
Power Supply
Rechargeable battery + AC adapter
Operating Temp Range –10 °C to +40 °C
Operating Temp Range
–10 °C to +40 °C
Pad Dimensions Approx. 800 mm × 600 mm × 70 mm (custom options available)
Pad Dimensions
Approx. 800 mm × 600 mm × 70 mm (custom options available)
Pad Weight ~35–45 kg each
Pad Weight
~35–45 kg each
Communication Ports USB / RS232 (Bluetooth optional)
Communication Ports
USB / RS232 (Bluetooth optional)
Transport Case Heavy-duty protective case (optional)
Transport Case
Heavy-duty protective case (optional)
Delivery & Procurement
Showroom Pickup
Wandegeya, Kampala
Inspect the product, confirm the configuration, and collect directly from our team.
Nationwide Delivery
Fast dispatch across Uganda
We coordinate delivery for Kampala, industrial sites, schools, hospitals, and upcountry buyers.
Bulk Supply
Commercial and institutional orders
Talk to us for multiple units, procurement support, and application-specific recommendations.
Product Description

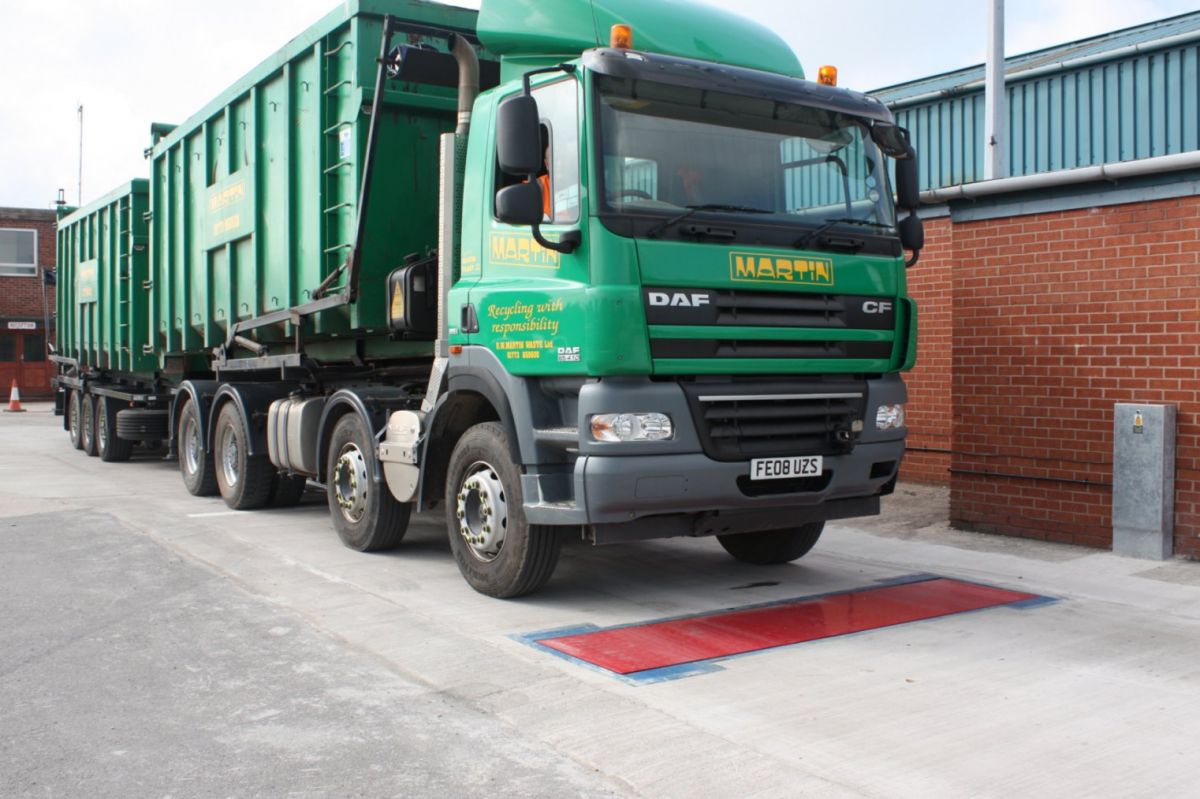

The Truck 2-Pads Axle Scale from Accurate Weighing Scales Ltd is a reliable and accurate weighing solution designed for quick and precise measurement of truck axle loads. Engineered for commercial fleets, weigh stations, logistics hubs, and industrial applications, this portable 2-pad system allows operators to capture individual axle weights and total gross vehicle weight without the need for a full static scale platform.
Each rugged weighing pad is built to withstand heavy loads and harsh working environments while delivering dependable performance. With easy setup and intuitive operation, the Truck 2-Pads Axle Scale provides faster weighing, improved compliance with load regulations, and reduced downtime for drivers.
Ideal for use on level ground or hard surfaces, this system ensures efficient field measurements with clear digital readouts and optional data reporting features — making it a practical choice for fleet owners, service technicians, and inspection teams.
Key Features
🛞 Durable & Portable
- Two robust weighing pads designed for heavy truck axles
- Strong steel or aluminum construction for long service life
- Portable and easy to reposition without fixed installation
📊 High Accuracy & Fast Response
- Precision load cells deliver consistent results
- Rapid weighing for efficient traffic flow
- Measures individual axle weights and calculates total truck weight
💡 User-Friendly Display
- Clear digital display with backlight
- Simple button controls — no special training required
- Readings in kg or lbs
🔌 Flexible Power & Connectivity
- Rechargeable battery with long run time
- Optional mains power adapter
- Data output via USB/RS232 (Bluetooth optional)
📦 Data & Reporting (Optional)
- Internal memory to store weight records
- Optional printer for weight tickets
Exportable data for logs and compliance reporting
