Vehicle-Weighbridges

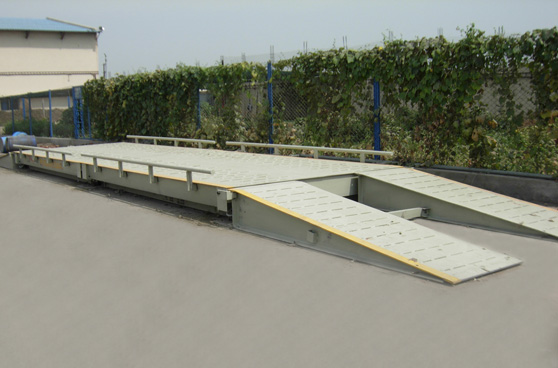

Reinforced structural steel frame with welded I-beam support
UGX 30,000,000
UGX 350,000,000
In Stock
Description
The 60-ton Weighbridge with Checked Plate from Accurate Weighing Scales Ltd is a heavy-duty vehicle weighing system designed for high-volume industrial applications. Featuring a checked plate (diamond plate) surface, this weighbridge offers excellent traction and safety for trucks and heavy vehicles, especially in wet or slippery conditions.
Built with reinforced structural steel and precision load cell technology, the 60-ton weighbridge delivers accurate, reliable, and repeatable weight measurements. It is ideal for industries such as mining, construction, logistics, manufacturing, and ports where heavy loads and continuous traffic demand a strong, durable, and dependable weighing solution.
Key Features
💪 Heavy-Duty Checked Plate Surface
- Checked plate (diamond plate) deck for extra grip and safety
- Durable surface designed to withstand heavy vehicle traffic
- Reduces slipping in wet or oily conditions
📊 Accurate & Reliable Weighing
- Precision load cells for stable and repeatable measurements
- Fast response time for efficient operations
- Supports gross, net, and axle weight (with optional software)
🧰 Robust Structural Design
- Reinforced structural steel frame with welded I-beam support
- Anti-corrosion coating for outdoor use
- Built for continuous heavy-duty operation
🖥 Advanced Digital Electronics
- Digital indicator with backlit display
- Multi-unit support (kg, tonne, lb)
- USB / RS232 / Ethernet output
- Optional Bluetooth/Wi-Fi connectivity
- Optional ticket printer and reporting software
🌦 Built for Harsh Environments
- Weather-resistant finish and sealed load cells
- Designed for outdoor use in tough conditions
- Long service life with minimal maintenance
Specifications
|
Product Name |
60-Ton Weighbridge with Checked Plate |
|
Platform Length Options |
9 m, 12 m, 15 m (custom lengths available) |
|
Platform Width |
Typically 3 m (custom widths available) |
|
Maximum Capacity |
60,000 kg (60 Ton) |
|
Accuracy Class |
OIML Class III (±0.5% or better) |
|
Deck Surface |
Checked plate (diamond plate) steel deck |
|
Framework |
Reinforced welded I-beam steel structure |
|
Load Cells |
Sealed precision alloy steel load cells |
|
Indicator Display |
Digital LCD/LED with backlight |
|
Units of Measure |
kg, tonne, lb (selectable) |
|
Data Output |
USB / RS232 / Ethernet (optional wireless) |
|
Power Supply |
AC mains (110–240 V) + optional battery backup |
|
Operating Temperature |
–10 °C to +50 °C |
|
Environmental Protection |
Corrosion-resistant coating & sealed load cells |
|
Calibration |
Certified calibration included |
