Vehicle-Weighbridges

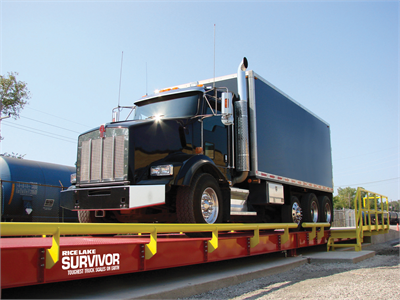

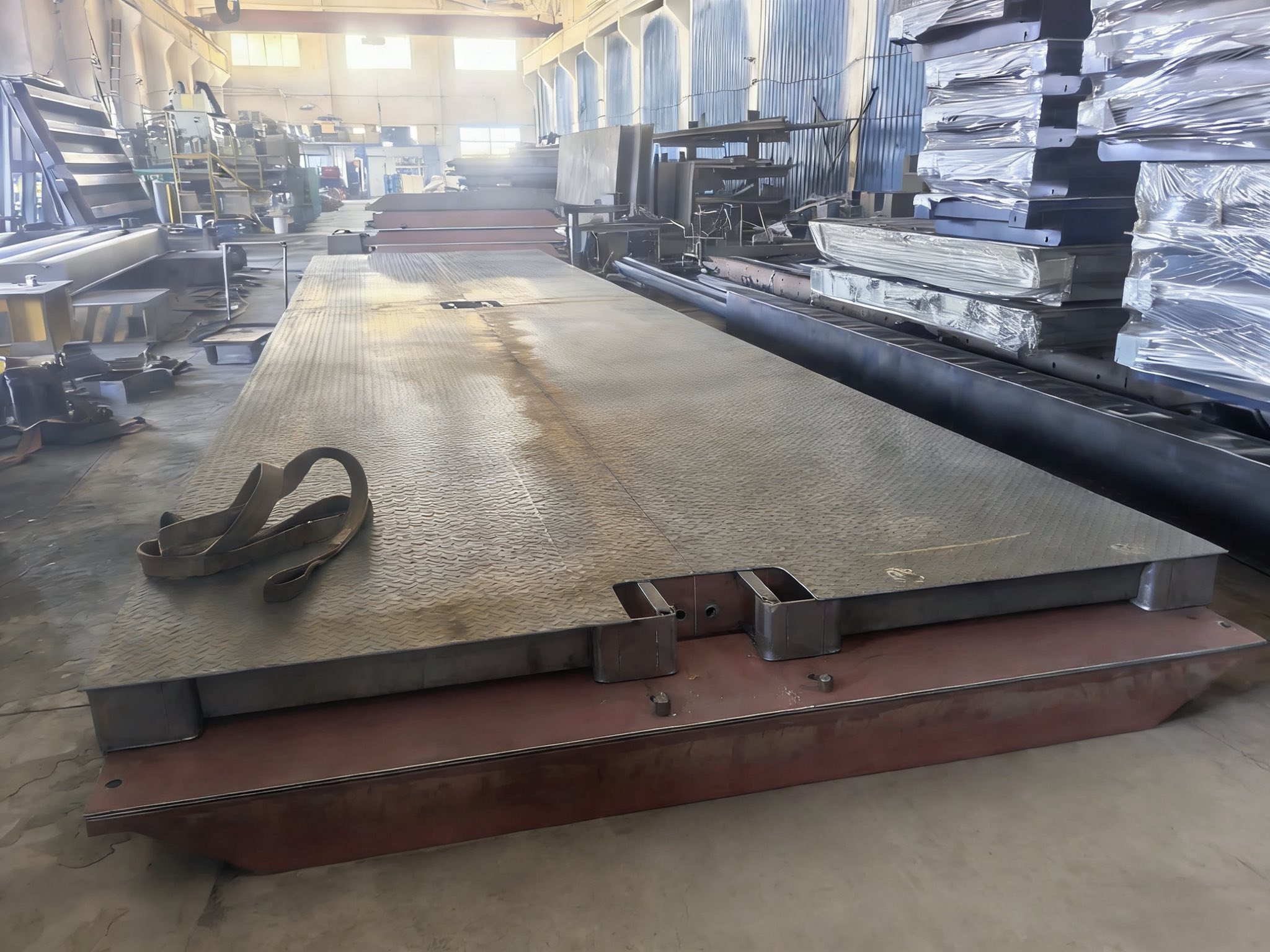

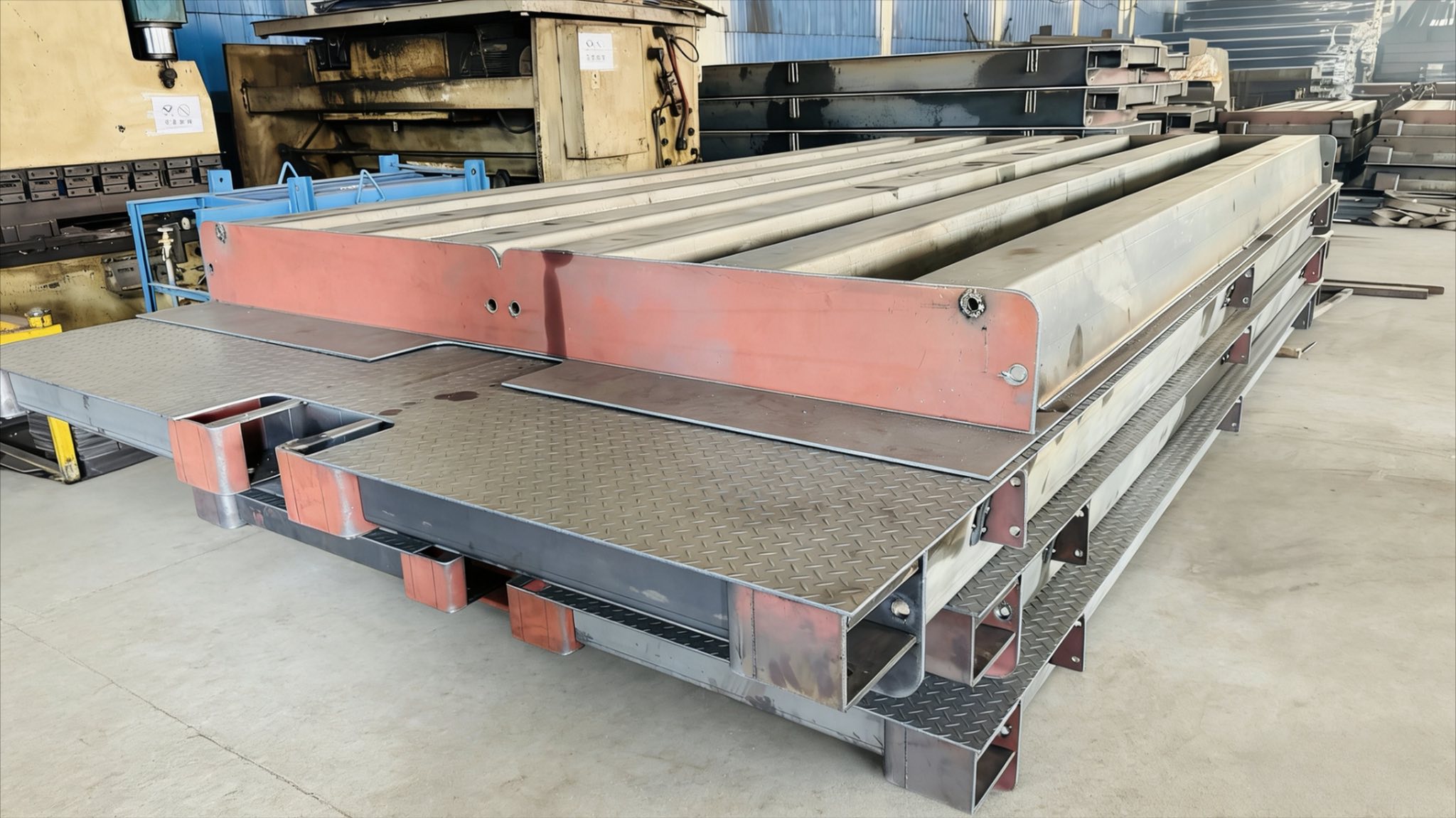

Pit Type Weighbridge for Accurate Truck Weighing
UGX 250,000,000
UGX 30,000,000
In Stock
Description
The Pit Type Weighbridge from Accurate Weighing Scales Ltd is a precision-engineered vehicle weighing system designed for accurate and reliable truck weight measurement in industrial environments. Built for permanent installation, this weighbridge is ideal for high-traffic applications such as logistics centers, manufacturing plants, ports, mining sites, and commercial weigh stations.
The pit-mounted design provides a flush, level deck that integrates seamlessly into the ground, offering safer vehicle movement, efficient loading operations, and a clean site appearance. Constructed with heavy-duty steel, advanced load cell technology, and robust digital electronics, this weighbridge delivers stable and repeatable readings, ensuring compliance with legal weight limits and improving operational efficiency.
Whether you require gross vehicle weight, axle load analysis, or integration with reporting systems, the Pit Type Weighbridge provides dependable performance and long-term durability for demanding industrial weighing needs.
Key Features
✅ Permanent Pit-Mounted Installation
- Flush installation into the ground for a level surface
- Ideal for high traffic and continuous use
- Enhances safety and operational flow
🧱 Heavy-Duty Structural Design
- Reinforced steel framework with welded I-beam support
- Designed for long-lasting performance under heavy truck loads
- Anti-slip deck surface for safety
📏 High Accuracy & Reliable Performance
- Precision load cells for consistent and repeatable measurements
- Stable readings even under frequent heavy usage
- Ideal for compliance, reporting, and payload control
🖥 Advanced Digital Electronics
- High-resolution digital indicator with backlit display
- Data export via USB/RS232/Ethernet
- Optional printer and software integration for records
🌦 Built for Tough Environments
- Corrosion-resistant finish for outdoor use
- Sealed load cells protected against dust and moisture
- Suitable for harsh conditions like mining and ports
Specifications
|
Product Name |
Pit Type Weighbridge |
|
Installation Type |
Pit Mounted (Flush Level Deck) |
|
Platform Length Options |
6 m, 9 m, 12 m, 15 m (custom lengths available) |
|
Platform Width |
Typically 3 m (custom widths available) |
|
Maximum Capacity |
80,000 kg / 100,000 kg / 120,000 kg (model dependent) |
|
Accuracy Class |
OIML Class III (±0.5% or better) |
|
Deck Construction |
Reinforced structural steel with anti-slip finish |
|
Framework |
Welded I-beam structure |
|
Load Cells |
Sealed precision alloy steel load cells |
|
Indicator Display |
Digital LCD/LED with backlight |
|
Units of Measure |
kg, tonne, lb (selectable) |
|
Data Output |
USB / RS232 / Ethernet (optional wireless) |
|
Power Supply |
AC mains (110–240 V) with optional battery backup |
|
Operating Temperature |
–10 °C to +50 °C |
|
Environmental Protection |
Corrosion-resistant coating & sealed load cells |
|
Calibration |
Certified calibration included |
