Vehicle-Weighbridges
designed for heavy-duty commercial vehicles such as trucks
UGX 20,000,000
UGX 25,000,000
In Stock
Description

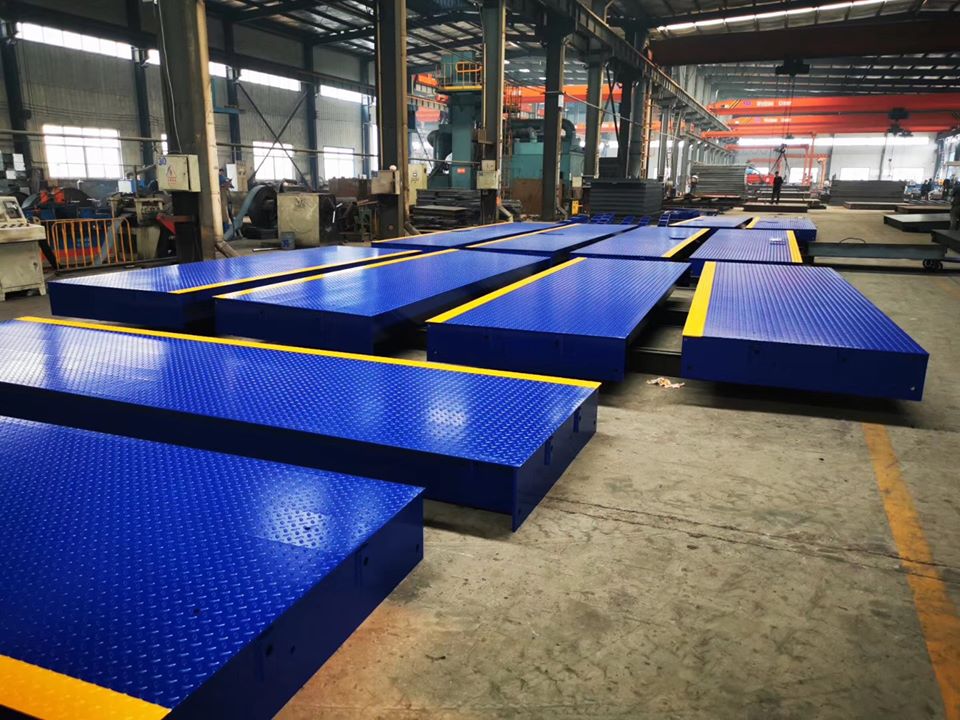

The Commercial Vehicle Weighbridge from Accurate Weighing Scales Ltd is a robust, high-accuracy weighing system designed for heavy-duty commercial vehicles such as trucks, trailers, buses, and industrial transport vehicles. Built to deliver consistent and reliable performance in demanding environments, this weighbridge is ideal for logistics centers, freight terminals, manufacturing plants, ports, mining sites, and commercial weigh stations.
Engineered with strong structural steel, precision load cells, and advanced digital electronics, the Commercial Vehicle Weighbridge provides accurate weight measurements for compliance, payload optimization, and operational efficiency. With a user-friendly interface and flexible installation options, this weighbridge is a trusted solution for businesses that require precise and repeatable vehicle weighing.
Key Features
🚚 Heavy-Duty Construction
- Reinforced structural steel frame with welded I-beam design
- Anti-slip deck surface for safety and durability
- Designed for high traffic and heavy loads
📊 High Accuracy & Reliability
- Precision load cells for stable and repeatable measurements
- Fast and consistent weight readings
- Suitable for gross, net, and axle weight (with optional software)
🧰 Flexible Installation
- Surface mount or pit mount options
- Modular deck sections for easy installation and maintenance
- Suitable for both indoor and outdoor use
🖥 Advanced Digital Electronics
- Digital indicator with backlit display
- Multiple unit options (kg, tonne, lb)
- Data output via USB/RS232/Ethernet
- Optional Bluetooth/Wi-Fi connectivity
- Optional ticket printer and reporting software
🌦 Built for Tough Environments
- Corrosion-resistant coating for outdoor use
- Sealed load cells to protect against dust and moisture
- Designed for long-term durability
Specifications
|
Product Name |
Commercial Vehicle Weighbridge |
|
Platform Length Options |
6 m, 9 m, 12 m, 15 m (custom lengths available) |
|
Platform Width |
Typically 3 m (custom widths available) |
|
Maximum Capacity |
80,000 kg / 100,000 kg / 120,000 kg (model dependent) |
|
Accuracy Class |
OIML Class III (±0.5% or better) |
|
Deck Construction |
Reinforced structural steel with anti-slip surface |
|
Framework |
Welded I-beam structure |
|
Load Cells |
Sealed precision alloy steel load cells |
|
Indicator Display |
Digital LCD/LED with backlight |
|
Units of Measure |
kg, tonne, lb (selectable) |
|
Data Output |
USB / RS232 / Ethernet (optional wireless) |
|
Power Supply |
AC mains (110–240 V) + optional battery backup |
|
Operating Temperature |
–10 °C to +50 °C |
|
Environmental Protection |
Corrosion-resistant coating & sealed load cells |
|
Calibration |
Certified calibration included |
