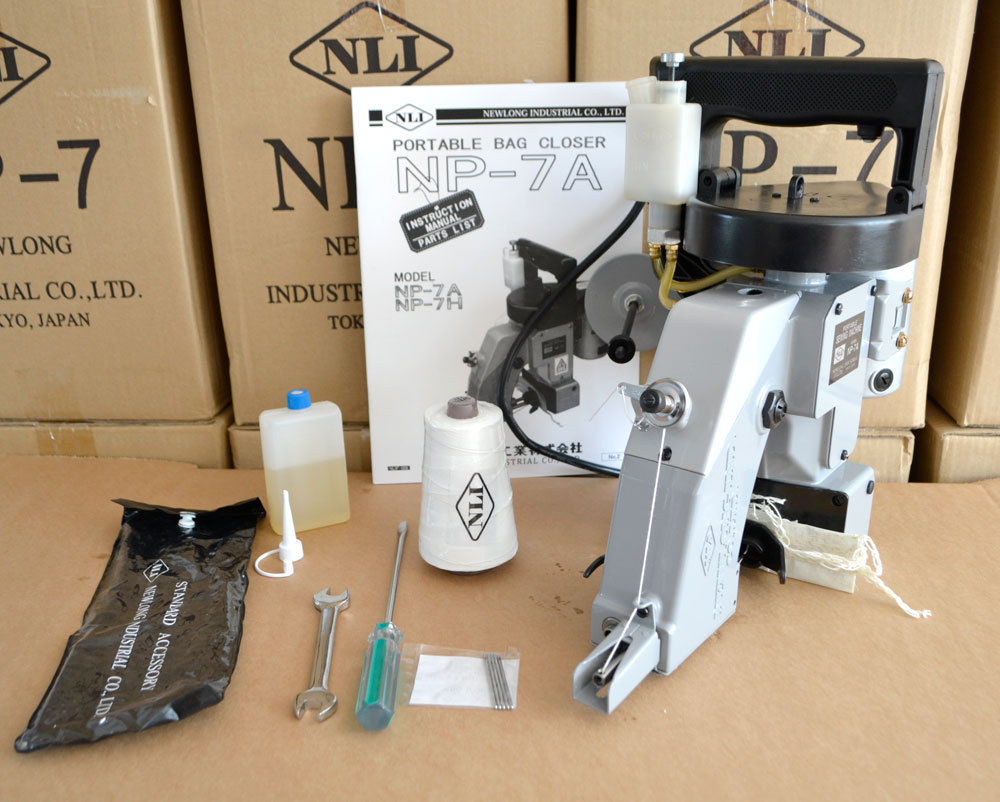

Chain Bags Closer Sewing Machine — Reliable Industrial Bag Sealer
UGX 550,000
UGX 650,000
In Stock
Description
The Chain Bags Closer Sewing Machine is a robust, industrial-grade machine designed for fast and secure closing of filled bags and sacks across a wide range of materials. Built for demanding packaging environments, it delivers strong chain-stitch seams that withstand handling, storage, and transport — ideal for agriculture, food, feed, fertilizer, grain, chemical, and industrial packaging lines.
This machine combines high productivity, durability, and ease of use, making it a must-have tool for warehouses, processing plants, and distribution centres.
Key Features
- Heavy-Duty Chain Stitch Closure: Produces secure, continuous chain stitches that hold up under load and movement.
- High-Speed Operation: Capable of sewing up to 1,600–1,800 stitches per minute, allowing rapid closure of bags and sacks to boost throughput.
- Automatic Thread Cutter: Integrated cutter trims the thread at the end of each bag closure, saving time and reducing manual handling.
- Reinforced Feed Mechanism: Wider presser foot and feed dog—with a larger throat plate—ensure smooth, consistent feeding and even stitch quality.
- Excellent Durability: Cast and machined metal housing with heat-treated components resists wear and tear, lowering maintenance costs and downtime.
- Lubrication System: Superior oil pump and reservoir with directed lubrication keep moving parts running smoothly for long-term performance.
- Quiet, Efficient Drive: Precision nylon or steel cam mechanisms reduce noise and vibration during operation.
- Easy Handling: Lightweight portable design with insulated safety handle for comfortable one-hand operation.
- Versatile Bag Compatibility: Works with kraft paper, multi-wall paper, woven PP/PE, jute, burlap, cotton, Hessian, and more.
Specifications
| Model Type | Single-thread chain stitch / Double-thread chain stitch (optional) |
| Stitch Type | Single needle, chain-stitch (101 type) |
| Stitch Speed | ~1,600–1,800 stitches/minute (5–8 bags/min) |
| Stitch Length | ~3.5 stitches/inch (25.4 mm) fixed or adjustable on some models |
| Maximum Material Thickness | Up to ~10 mm (multi-wall paper, woven fabrics, plastic) |
| Needle Type | DN×1 #25 (industry standard) |
| Power Supply | 220–250 V AC, 50/60 Hz |
| Motor | Enclosed electric motor with dust-proof casing |
| Weight | ~5–7 kg portable handling |
| Dimensions | Varies by model (~30 cm × 30 cm × 33 cm typical) |
