Axle-Truck-Scales

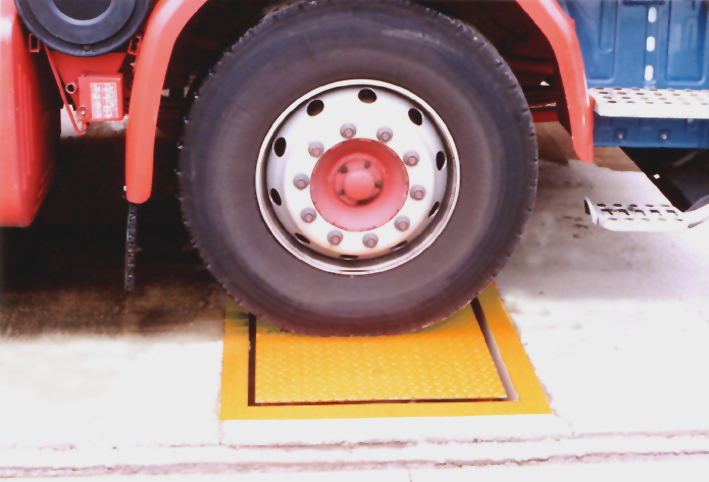

Axle Weighing Scale
UGX 20,000,000
UGX 250,000,000
In Stock
Description
The Axle Weighing Scale from Accurate Weighing Scales Ltd is a precision-engineered weighing solution designed to accurately measure the load on individual axles of trucks, trailers, and heavy vehicles. Whether used for compliance checks, payload optimization, safety inspections, or fleet management, this scale delivers fast, reliable, and dependable readings in both field and fixed installations.
With robust construction and advanced load cell technology, our Axle Weighing Scale is ideal for use at weigh stations, logistics hubs, service depots, and industrial sites. Easy to install and operate, this scale helps businesses ensure load safety, avoid overloading penalties, and protect vehicle integrity — all while improving operational efficiency.
Key Features
🛞 Reliable & Accurate Weighing
- High-precision sensors for consistent axle load measurement
- Instant digital readout for quick assessment
- Measures loads in kg or lb
💪 Rugged Industrial Design
- Heavy-duty steel/aluminum platforms for long service life
- Anti-slip surface ensures safe vehicle positioning
- Sealed components for resistance against dust and moisture
📊 User-Friendly Interface
- Backlit digital display for easy reading in all lighting conditions
- Simple keypad controls — minimal learning required
🔌 Flexible Power & Connectivity
- Rechargeable battery for mobile applications
- AC power option for stationary use
- Optional USB/RS232 output for data transfer
- Optional Bluetooth connectivity
🧰 Portable & Versatile
- Modular design for easy transport and setup
- Suitable for permanent installation or temporary deployment
- Optional carry case or trolley for easy mobility
Specifications
| Product Name | Product Name Axle Weighing Scale |
| Weighing Capacity Up to 25,000 kg per axle (model dependent) | Axle Weighing Scale |
| Up to 25,000 kg per axle (model dependent) | Weighing Capacity |
| Accuracy | Accuracy ±0.5% – ±1% of reading (model/configuration dependent) |
| Load Cells Sealed precision alloy steel | ±0.5% – ±1% of reading (model/configuration dependent) |
| Sealed precision alloy steel | Load Cells |
| Display | Display LCD/LED with backlight |
| Units Kg / Lb selectable | LCD/LED with backlight |
| Kg / Lb selectable | Units |
| Power Supply | Power Supply Rechargeable battery + AC adapter |
| Operating Temp Range –10 °C to +40 °C | Rechargeable battery + AC adapter |
| –10 °C to +40 °C | Operating Temp Range |
| Platform Dimensions | Platform Dimensions Customizable; typical range ~800–1200 mm × 600–900 mm |
| Platform Weight Approx. ~30–50 kg (varies by size) | Customizable; typical range ~800–1200 mm × 600–900 mm |
| Approx. ~30–50 kg (varies by size) | Platform Weight |
| Communication Ports | Communication Ports USB / RS232; Bluetooth optional |
| Construction Steel or aluminum with non-slip surface | USB / RS232; Bluetooth optional |
| Steel or aluminum with non-slip surface | Construction |
