Vehicle-Weighbridges
SKU prod-727
60-Ton Weighbridge with Checked Plate
UGX 145,000,000
UGX 150,000,000
Service Highlights
Wandegeya Showroom
Inspect the unit in person before you buy.
Nationwide Delivery
Fast dispatch to Kampala and upcountry destinations.
Calibration Support
Setup guidance and servicing for working environments.
Direct Expert Help
Phone and WhatsApp support for sizing and usage advice.
Technical Specifications
Product Name
60-Ton Weighbridge with Checked Plate
Platform Length Options
9 m, 12 m, 15 m (custom lengths available)
Platform Width
Typically 3 m (custom widths available)
Maximum Capacity
60,000 kg (60 Ton)
Accuracy Class
OIML Class III (±0.5% or better)
Deck Surface
Checked plate (diamond plate) steel deck
Framework
Reinforced welded I-beam steel structure
Load Cells
Sealed precision alloy steel load cells
Indicator Display
Digital LCD/LED with backlight
Units of Measure
kg, tonne, lb (selectable)
Data Output
USB / RS232 / Ethernet (optional wireless)
Power Supply
AC mains (110–240 V) + optional battery backup
Operating Temperature
–10 °C to +50 °C
Environmental Protection
Corrosion-resistant coating & sealed load cells
Calibration
Certified calibration included
Delivery & Procurement
Showroom Pickup
Wandegeya, Kampala
Inspect the product, confirm the configuration, and collect directly from our team.
Nationwide Delivery
Fast dispatch across Uganda
We coordinate delivery for Kampala, industrial sites, schools, hospitals, and upcountry buyers.
Bulk Supply
Commercial and institutional orders
Talk to us for multiple units, procurement support, and application-specific recommendations.
Product Description
The 60-ton Weighbridge with Checked Plate from Accurate Weighing Scales Ltd is a heavy-duty vehicle weighing system designed for high-volume industrial applications. Featuring a checked plate (diamond plate) surface, this weighbridge offers excellent traction and safety for trucks and heavy vehicles, especially in wet or slippery conditions.
Built with reinforced structural steel and precision load cell technology, the 60-ton weighbridge delivers accurate, reliable, and repeatable weight measurements. It is ideal for industries such as mining, construction, logistics, manufacturing, and ports where heavy loads and continuous traffic demand a strong, durable, and dependable weighing solution.
Key Features
💪 Heavy-Duty Checked Plate Surface
Checked plate (diamond plate) deck for extra grip and safety
Durable surface designed to withstand heavy vehicle traffic
Reduces slipping in wet or oily conditions
📊 Accurate & Reliable Weighing
Precision load cells for stable and repeatable measurements
Fast response time for efficient operations
Supports gross, net, and axle weight (with optional software)
🧰 Robust Structural Design

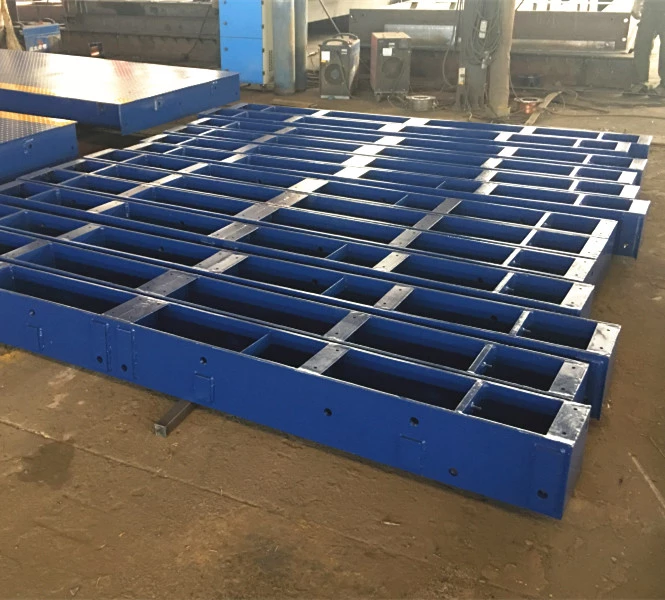

Reinforced structural steel frame with welded I-beam support
Anti-corrosion coating for outdoor use
Built for continuous heavy-duty operation
🖥 Advanced Digital Electronics
Digital indicator with backlit display
Multi-unit support (kg, tonne, lb)
USB / RS232 / Ethernet output
Optional Bluetooth/Wi-Fi connectivity
Optional ticket printer and reporting software
🌦 Built for Harsh Environments
Weather-resistant finish and sealed load cells
Designed for outdoor use in tough conditions
Long service life with minimal maintenance
