Vehicle-Weighbridges
60-Ton Weighbridge with Checked Plate
UGX 140,000,000
UGX 150,000,000
In Stock
Description

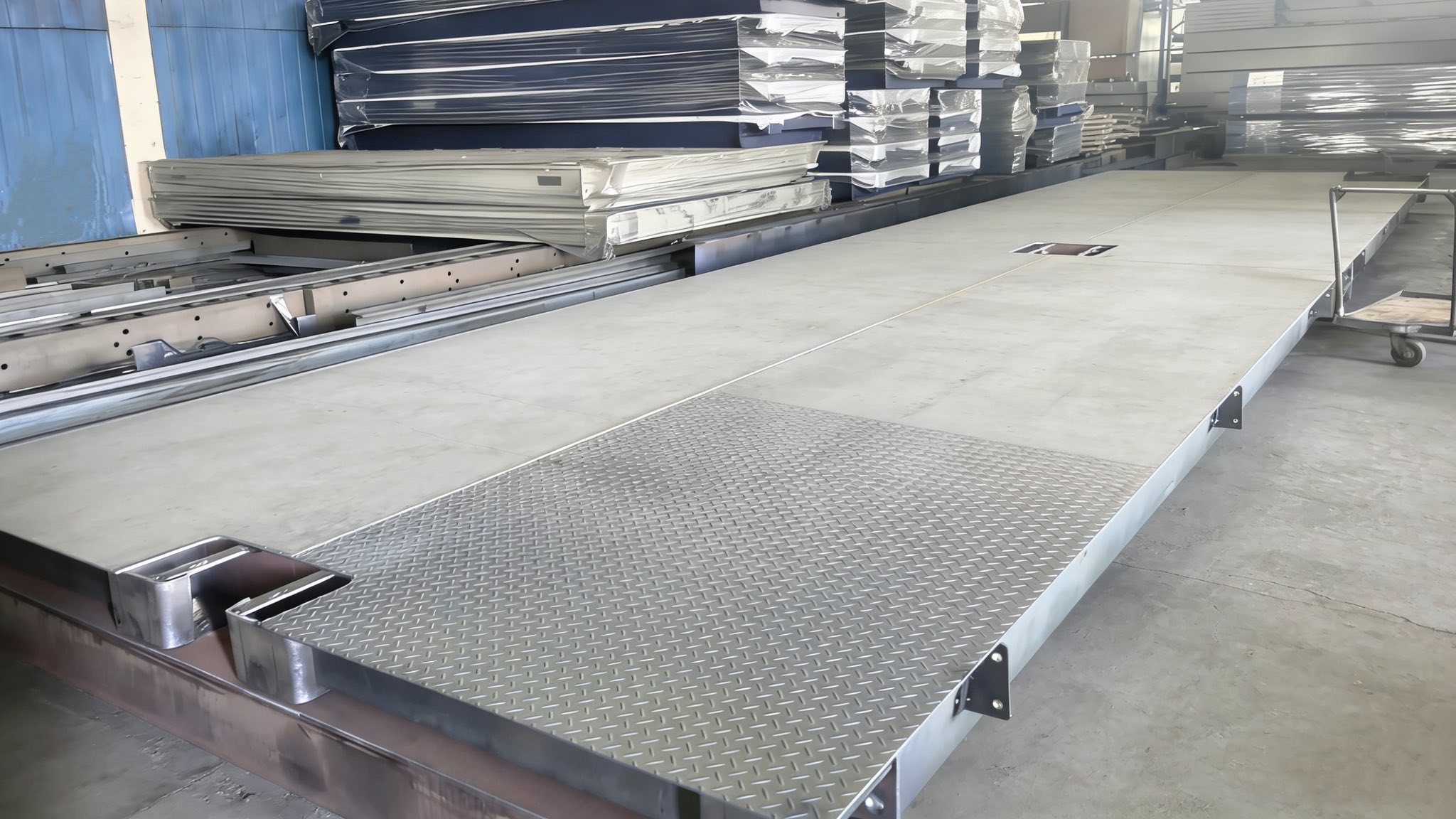

The 60-ton Weighbridge with Checked Plate from Accurate Weighing Scales Ltd is a heavy-duty vehicle weighing system designed for high-volume industrial applications. Featuring a checked plate (diamond plate) surface, this weighbridge offers excellent traction and safety for trucks and heavy vehicles, especially in wet or slippery conditions.
Built with reinforced structural steel and precision load cell technology, the 60-ton weighbridge delivers accurate, reliable, and repeatable weight measurements. It is ideal for industries such as mining, construction, logistics, manufacturing, and ports where heavy loads and continuous traffic demand a strong, durable, and dependable weighing solution.
Key Features
💪 Heavy-Duty Checked Plate Surface
Checked plate (diamond plate) deck for extra grip and safety
Durable surface designed to withstand heavy vehicle traffic
Reduces slipping in wet or oily conditions
📊 Accurate & Reliable Weighing
Precision load cells for stable and repeatable measurements
Fast response time for efficient operations
Supports gross, net, and axle weight (with optional software)
🧰 Robust Structural Design
Reinforced structural steel frame with welded I-beam support
Anti-corrosion coating for outdoor use
Built for continuous heavy-duty operation
🖥 Advanced Digital Electronics
Digital indicator with backlit display
Multi-unit support (kg, tonne, lb)
USB / RS232 / Ethernet output
Optional Bluetooth/Wi-Fi connectivity
Optional ticket printer and reporting software
🌦 Built for Harsh Environments
Weather-resistant finish and sealed load cells
Designed for outdoor use in tough conditions
Long service life with minimal maintenance
Specifications
| Product Name | 60-Ton Weighbridge with Checked Plate |
| Platform Length Options | 9 m, 12 m, 15 m (custom lengths available) |
| Platform Width | Typically 3 m (custom widths available) |
| Maximum Capacity | 60,000 kg (60 Ton) |
| Accuracy Class | OIML Class III (±0.5% or better) |
| Deck Surface | Checked plate (diamond plate) steel deck |
| Framework | Reinforced welded I-beam steel structure |
| Load Cells | Sealed precision alloy steel load cells |
| Indicator Display | Digital LCD/LED with backlight |
| Units of Measure | kg, tonne, lb (selectable) |
| Data Output | USB / RS232 / Ethernet (optional wireless) |
| Power Supply | AC mains (110–240 V) + optional battery backup |
| Operating Temperature | –10 °C to +50 °C |
| Environmental Protection | Corrosion-resistant coating & sealed load cells |
| Calibration | Certified calibration included |
