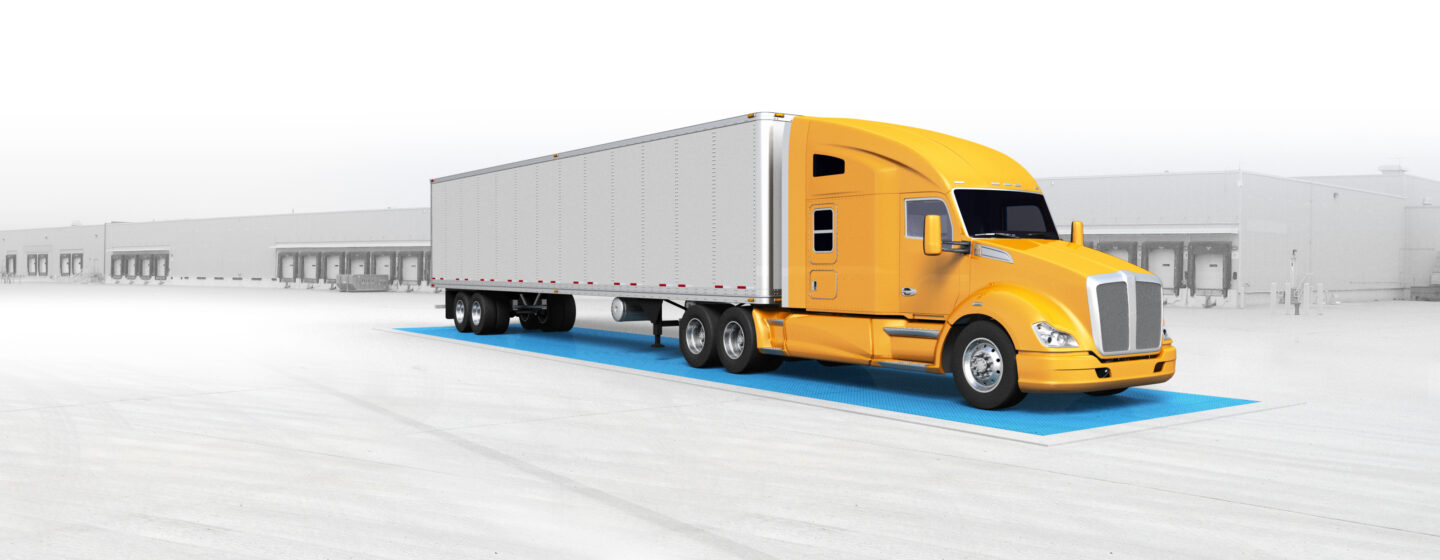

The Vehicle Weighing Bridge from Accurate Weighing Scales Ltd is a high-performance weighing solution designed specifically for logistics and freight operations. Built to handle heavy traffic and constant use, this weighbridge offers accurate, reliable, and fast weight measurement for trucks, trailers, and commercial vehicles.
Ideal for logistics centers, distribution hubs, ports, and freight terminals, this vehicle weighing bridge helps streamline operations by ensuring proper load management, compliance with weight regulations, and efficient cargo handling. With advanced digital electronics and robust construction, the system provides accurate weight data, easy data management, and long-term durability — making it an essential tool for modern logistics operations.
Key Features
🚚 Optimized for Logistics Operations
- Fast and efficient weighing for high-traffic environments
- Supports gross, net, and axle weight measurement (with software)
- Helps prevent overloading and improves fleet productivity
💪 Heavy-Duty Construction
- Reinforced structural steel frame with welded I-beam support
- Anti-slip deck surface for safety and durability
- Built for continuous use in industrial environments
🖥 Advanced Digital Electronics
- Digital weight indicator with backlit display
- Multiple units (kg, tonne, lb)
- USB / RS232 / Ethernet data output
- Optional wireless connectivity (Bluetooth/Wi-Fi)
- Optional ticket printer and reporting software
🧰 Flexible Installation
- Available in surface mount or pit mount configurations
- Modular deck sections for easy installation and maintenance
- Suitable for both indoor and outdoor applications
🌦 Weather-Resistant Design
- Corrosion-resistant finish for outdoor use
- Sealed load cells protected from dust and moisture
- Built to withstand harsh weather conditions
Technical Specifications
|
Specification |
Details |
|
Product Name |
Vehicle Weighing Bridge (Logistics) |
|
Platform Length Options |
6 m, 9 m, 12 m, 15 m (custom lengths available) |
|
Platform Width |
Typically 3 m (custom widths available) |
|
Maximum Capacity |
80,000 kg / 100,000 kg / 120,000 kg (model dependent) |
|
Accuracy Class |
OIML Class III (±0.5% or better) |
|
Deck Construction |
Reinforced structural steel with anti-slip surface |
|
Framework |
Welded I-beam structure |
|
Load Cells |
Sealed precision alloy steel load cells |
|
Indicator Display |
Digital LCD/LED with backlight |
|
Units of Measure |
kg, tonne, lb (selectable) |
|
Data Output |
USB / RS232 / Ethernet (optional wireless) |
|
Power Supply |
AC mains (110–240 V) with optional battery backup |
|
Operating Temperature |
–10 °C to +50 °C |
|
Environmental Protection |
Corrosion-resistant coating & sealed load cells |
|
Calibration |
Certified calibration included |
Applications
✔ Logistics and freight terminals
✔ Distribution centers and warehouses
✔ Ports and customs checkpoints
✔ Trucking and haulage operations
✔ Manufacturing and supply chain hubs
Why Choose Accurate Weighing Scales Ltd Vehicle Weighing Bridge?
- Designed for Logistics: Fast, reliable weighing for busy freight operations
- Accurate & Consistent: Precision measurements for compliance and payload control
- Built to Last: Durable construction for high traffic and heavy loads
- Easy Data Management: Advanced electronics for reporting and integration
- Professional Support: Installation, calibration, and after-sales service
