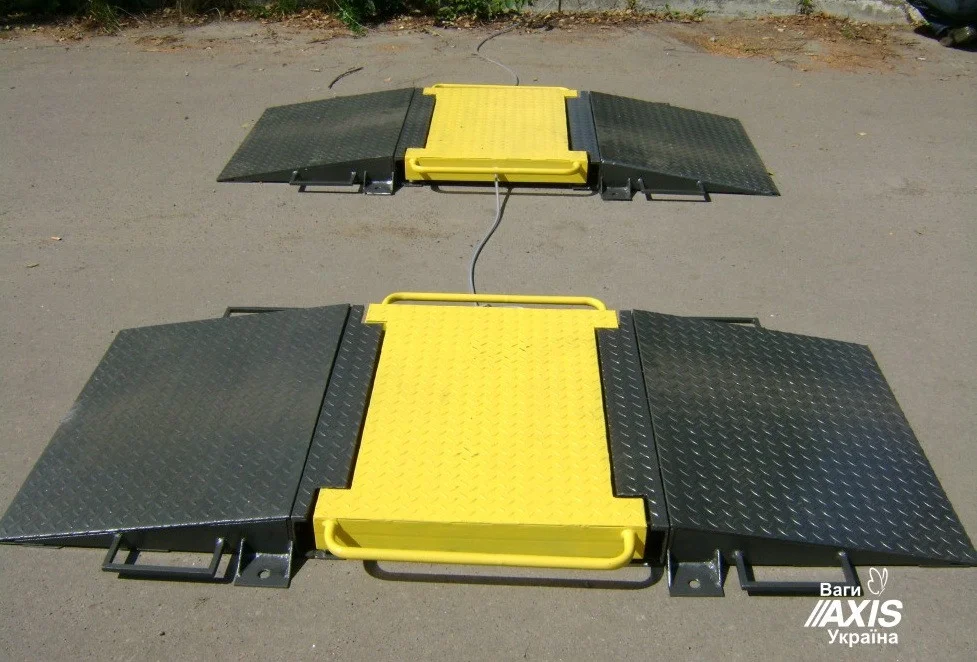

The Truck Vehicle Axle Scale with Touch Screen is an advanced weighing system designed for accurate measurement of truck axle loads and total vehicle weight. It is widely used in highways, logistics hubs, mining sites, ports, and inspection stations to ensure compliance with road safety and transport regulations.
Equipped with a modern touch screen indicator, this system provides a user-friendly interface for fast operation, real-time data display, and easy configuration. The axle scale is built with heavy-duty industrial materials and high-precision load cells to deliver reliable performance even under extreme loading conditions.
This system can operate in both static and dynamic weighing modes, allowing vehicles to be weighed either while stationary or moving slowly over the platform. It improves efficiency, reduces inspection time, and enhances accuracy in vehicle load monitoring.
⚙️ Specifications
|
Feature |
Details |
|
Type |
Truck Axle Weighing Scale with Touch Screen |
|
Weighing Mode |
Static / Dynamic axle weighing |
|
Capacity per Axle |
10 tons – 30 tons (model dependent) |
|
Total Capacity |
Up to 100 tons+ |
|
Accuracy Class |
±0.5% to ±1% |
|
Display System |
Industrial touch screen LCD (color display) |
|
Load Cells |
High-precision alloy steel load cells |
|
Platform Material |
Heavy-duty steel with anti-slip surface |
|
Power Supply |
AC 220V / 110V, optional solar support |
|
Operating System |
Embedded industrial control system |
|
Data Storage |
Internal memory with logging capability |
|
Connectivity |
USB / RS232 / Ethernet / Wireless (optional) |
|
Weighing Speed |
5–15 seconds per axle |
|
Operating Temperature |
-30°C to +70°C |
|
Protection Rating |
IP66 / IP67 load cell protection |
|
Installation Type |
Pit-mounted or surface-mounted |
|
Software Features |
Vehicle ID entry, overload alerts, reporting system |
|
Calibration |
Digital calibration via touch interface |
🔑 Key Features
- Modern touch screen interface for easy operation
- High-accuracy axle and total vehicle weight measurement
- Supports both static and dynamic weighing modes
- Durable heavy-duty steel construction for industrial use
- Fast weighing process for efficient traffic flow
- Built-in data storage and reporting system
- Overload detection and warning system
- Optional integration with traffic management software
