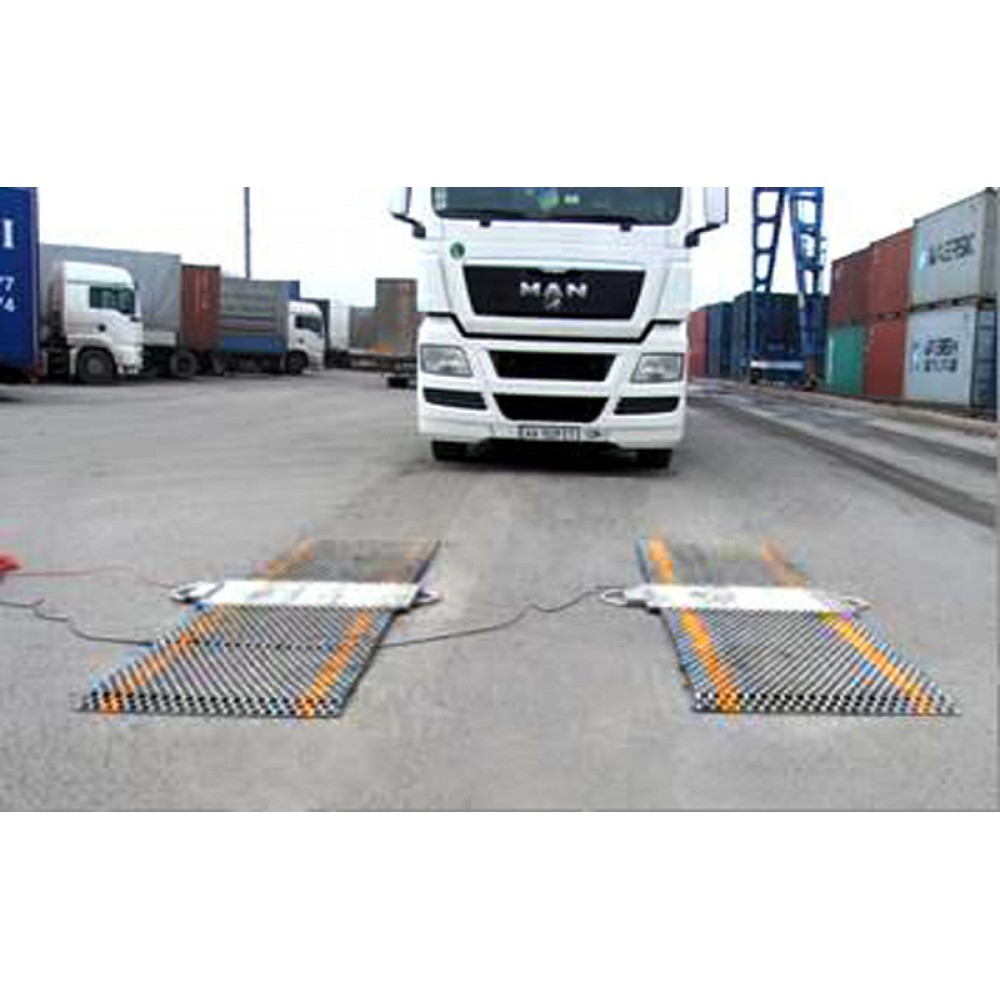

Truck Axle Scales are advanced portable weighing systems designed to measure the weight of individual axles of trucks, trailers, buses, and heavy-duty vehicles. They are widely used in transport inspection stations, logistics companies, mining sites, construction areas, and border control points to ensure compliance with road weight regulations and prevent overloading.
These systems operate by placing each axle of the vehicle onto a high-precision weighing platform. The system records each axle weight separately and then calculates the total gross vehicle weight automatically. This method provides fast, flexible, and reliable weighing without the need for a permanent weighbridge installation.
Truck axle scales are available in static and dynamic versions, making them suitable for both stationary and slow-moving vehicle weighing operations. Their portable design allows quick deployment in any location with a stable surface, making them ideal for field operations.
Key Features
- Portable and easy to deploy anywhere
- High-precision digital load cell technology
- Measures individual axle loads and total vehicle weight
- Suitable for static and dynamic weighing
- Heavy-duty aluminum or steel platform construction
- Anti-slip surface for safe vehicle positioning
- Waterproof and dustproof load cells (industrial grade)
- Rechargeable battery and AC power operation
- Optional wireless or cable communication system
- Overload protection and error detection system
Technical Specifications
Weighing Performance
- Weighing Capacity (per axle): 10,000 kg – 20,000 kg (model dependent)
- Total System Capacity: Up to 40–80 tons (multiple axle setup)
- Accuracy (Static): ±0.1% to ±0.25%
- Accuracy (Dynamic): ±1% to ±3% (low-speed weighing)
- Resolution: 1 kg – 10 kg divisions
Platform
- Material: High-strength aluminum alloy / steel
- Design: Low-profile portable pads
- Surface: Anti-slip rubber coating
- Height: Approximately 35–60 mm
- Portability: Lightweight with carrying handles
Load Cells
- Type: Strain gauge load cells
- Protection Level: IP68 waterproof & dustproof
- Material: Alloy steel or stainless steel
- Configuration: 4–6 load cells per platform (depending on model)
Indicator System
- Digital LCD/LED display with backlight
- Functions: Tare, Zero, Hold, Total weight calculation
- Unit conversion: kg / lb / ton
- Data storage and printing (optional)
- Overload alarm and low battery warning
Power Supply
- Rechargeable battery (16–80 hours operation depending on usage)
- AC power adapter (110V/220V compatible)
- Energy-saving automatic shutoff
Operating Conditions
- Temperature Range: -10°C to 50°C
- Environment: Outdoor and industrial use
- Protection Class: IP65–IP68 depending on model
- Surface Requirement: Flat, stable ground for best accuracy
System Configuration
- 1–4 axle weighing pads (expandable system)
- 1 digital indicator unit
- Cables or wireless transmission system
- Optional printer and software integration
