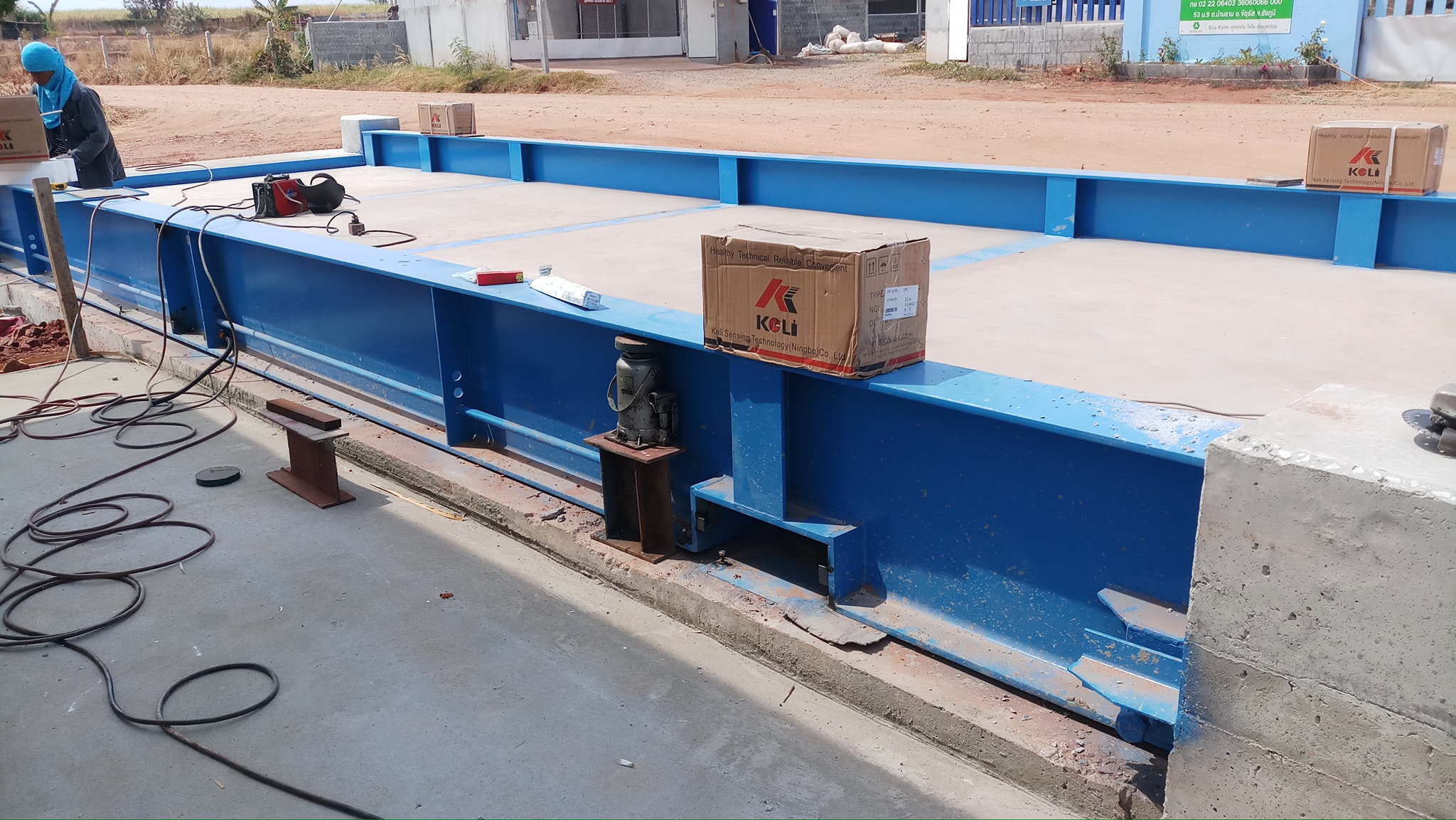

The Truck and Container Loading Weighbridge from Accurate Weighing Scales Ltd is a robust and high-precision weighing solution designed for accurate measurement of trucks, trailers, and loaded containers during loading and dispatch operations. Engineered for demanding logistics and industrial environments, this weighbridge helps ensure correct container loading, compliance with weight regulations, and safe transportation.
Built with heavy-duty structural steel, precision load cell technology, and advanced digital electronics, the system provides fast, stable, and reliable weight readings even under continuous traffic. It is ideal for ports, container yards, freight terminals, warehouses, and manufacturing plants where accurate container and truck weights are critical for operational efficiency and legal compliance.
Key Features
🚚 Optimized for Truck & Container Loading
- Designed to weigh loaded trucks and ISO containers accurately
- Helps prevent overloading and uneven container loading
- Suitable for gross, tare, and net weight measurement
💪 Heavy-Duty Industrial Construction
- Reinforced steel platform with welded I-beam structure
- Anti-slip deck surface for vehicle safety
- Built to withstand heavy loads and high traffic volumes
📊 High Accuracy & Reliable Performance
- Precision sealed load cells for stable and repeatable readings
- Fast weight stabilization for efficient loading operations
- Consistent accuracy under dynamic industrial conditions
🖥 Advanced Digital Weighing System
- Digital indicator with clear backlit display
- Multiple units of measurement (kg, tonne, lb)
- USB / RS232 / Ethernet data output
- Optional printer and weighbridge management software
🧰 Flexible Installation Options
- Available in pit-mounted or surface-mounted designs
- Modular platform sections for easy installation and maintenance
- Suitable for indoor and outdoor applications
Technical Specifications
|
Specification |
Details |
|
Product Name |
Truck and Container Loading Weighbridge |
|
Platform Length Options |
12 m, 15 m, 18 m (custom lengths available) |
|
Platform Width |
Typically 3 m (custom widths available) |
|
Maximum Capacity |
60,000 kg / 80,000 kg / 100,000 kg (model dependent) |
|
Accuracy Class |
OIML Class III (±0.5% or better) |
|
Deck Construction |
Heavy-duty steel platform with anti-slip surface |
|
Framework |
Reinforced welded I-beam steel structure |
|
Load Cells |
Sealed precision alloy steel load cells |
|
Indicator Display |
Digital LCD/LED with backlit display |
|
Weighing Functions |
Gross, Tare, Net |
|
Units of Measure |
kg, tonne, lb (selectable) |
|
Data Output |
USB / RS232 / Ethernet (optional Bluetooth/Wi-Fi) |
|
Power Supply |
AC mains (110–240 V) with optional battery backup |
|
Operating Temperature |
–10 °C to +50 °C |
|
Environmental Protection |
Corrosion-resistant coating & sealed load cells |
|
Calibration |
Certified calibration included |
Applications
✔ Container yards and ICDs
✔ Ports and shipping terminals
✔ Logistics and freight terminals
✔ Warehouses and distribution centers
✔ Manufacturing and export facilities
✔ Truck loading and dispatch areas
Why Choose Accurate Weighing Scales Ltd Truck & Container Loading Weighbridge?
- Accurate Container Weight Control — prevents overloading and penalties
- Reliable Industrial Performance — designed for continuous heavy use
- Durable Construction — long service life in harsh environments
- Data-Ready System — easy integration with logistics and reporting software
- Complete Solution — supply, installation, calibration, and support
