Load Axle Weighing Scales are high-precision portable truck weighing systems designed to measure individual axle loads and total gross vehicle weight. They are widely used in transport inspection stations, logistics companies, construction sites, mining operations, and border control points to ensure compliance with road weight limits and prevent overloading fines.

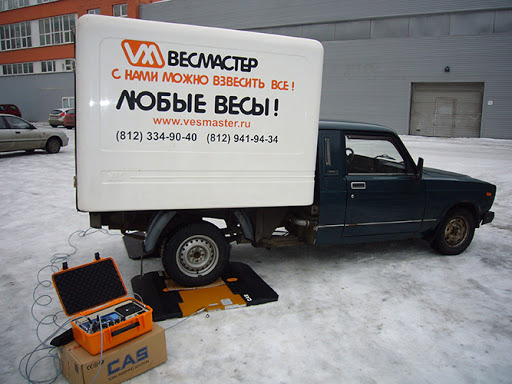

These portable axle scales feature rugged weighing pads placed under each wheel or axle of a vehicle. When a truck drives over or stops on the platforms, the system captures the load distribution accurately and instantly displays results on a digital indicator.
Built for harsh industrial environments, these scales are lightweight, easy to transport, and quick to install, making them ideal for field operations where permanent weighbridges are not practical.
They are commonly used for static weighing (vehicle stopped) and some models support low-speed dynamic weighing for faster inspections.
Key Features
- Portable and easy to deploy anywhere
- High-precision digital load cell technology
- Measures individual axle weight and total vehicle weight
- Suitable for trucks, trailers, buses, and heavy vehicles
- Anti-slip platform surface for safe operation
- Heavy-duty aluminum or steel construction
- Waterproof and dustproof industrial load cells
- Rechargeable battery and AC power operation
- Digital indicator with clear LCD/LED display
- Optional wireless data transmission system
- Overload and error protection system
Technical Specifications
Weighing Capacity
- Per axle capacity: 10 tons – 20 tons (model dependent)
- Total system capacity: Up to 40–80 tons
- Accuracy (Static): ±0.1% – ±0.5% of applied load
- Accuracy (Dynamic): ±1% – ±3% (low-speed weighing)
- Minimum division: 1 kg – 10 kg
Weighing Pads / Platform
- Material: High-strength aluminum alloy or steel
- Design: Low-profile portable axle pads
- Surface: Anti-slip textured top plate
- Height: Approx. 30–60 mm
- Portability: Lightweight with handles for easy transport
- Installation: No permanent foundation required
Load Cells
- Type: Strain gauge load cells
- Protection rating: IP67–IP68 waterproof & dustproof
- Construction: Alloy steel / stainless steel
- Overload capacity: Up to 120% full scale
- Configuration: Multi-load cell per pad system
Indicator System
- Digital LCD/LED display with backlight
- Functions: Tare, Zero, Hold, Total weight calculation
- Unit conversion: kg / lb / ton
- Optional printer and data storage
- Overload alarm and low battery warning
- Optional wireless connectivity
Power Supply
- Rechargeable battery (up to 16–80 hours operation)
- AC power adapter (110V / 220V compatible)
- Energy-saving auto shut-off function
Operating Conditions
- Temperature range: -10°C to 50°C
- Environment: Outdoor and industrial use
- Protection class: IP65–IP68 (model dependent)
- Surface requirement: Flat and stable ground recommended
