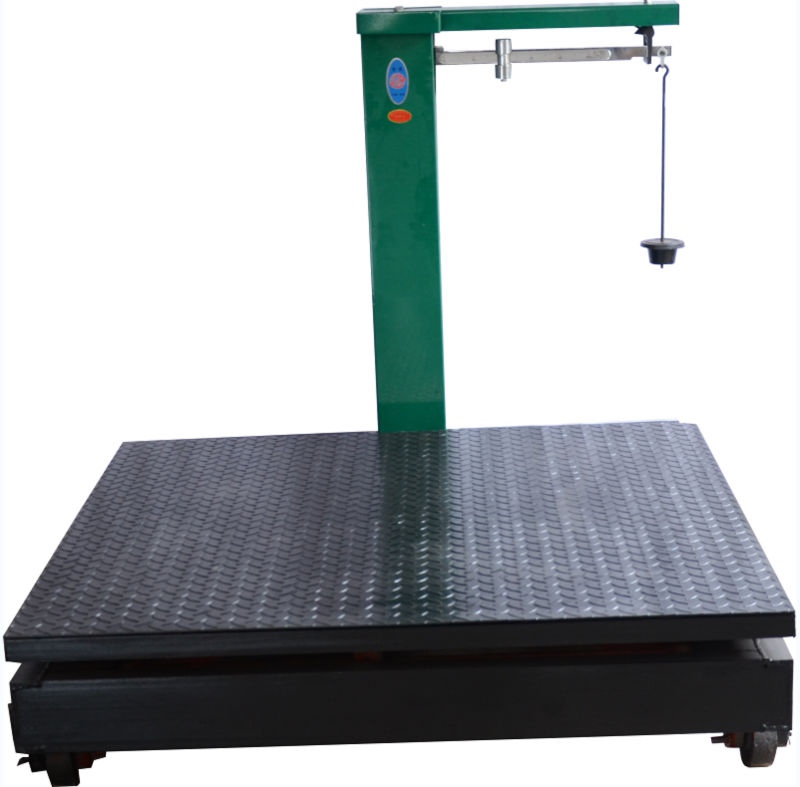

In 2026, steelyard-type mechanical platform scales remain the definitive choice for environments where electricity is unavailable, hazardous (explosive dust/gas), or where extreme structural durability is required over high-speed digital data.
Unlike dial scales that use springs, the steelyard type uses a lever-and-poise system—a manual sliding weight on a graduated brass or steel arm.
1. Why Choose a Steelyard Scale in 2026?
While digital scales dominate for speed, the steelyard is preferred for specific industrial niches:
- Zero Power Dependency: Works 24/7 in remote yards, docks, or during power outages without batteries or charging.
- Explosion Proof by Nature: Since there are no electronic components, they are inherently safe for chemical plants or grain silos where a digital spark could cause a fire.
- Longevity: These scales often last 30–50 years. There are no motherboards to fry or load cells to "drift" due to moisture.
- High Capacity: Available in configurations ranging from 300kg to over 5,000kg (5 tons).
2. Technical Specifications (Standard Build)
A "brand-new" steelyard scale in 2026 usually adheres to these traditional engineering standards:
|
Component |
Professional Specification |
|
Beam (Arm) |
Polished Brass or Zinc-plated Steel with machine-cut notches. |
|
Platform |
Heavy-duty Cast Iron or reinforced Mild Steel checkered plate. |
|
Pivots & Bearings |
Hardened Alloy Steel (designed to resist wear for decades). |
|
Mechanism |
Sliding "Poise" weight (Major bar for 10s of kg, Minor bar for grams/kg). |
|
Portability |
Often fitted with Cast Iron wheels for easy movement around a factory. |
3. Best-Known Suppliers & Manufacturers
The manufacturing of these scales is now concentrated among heritage brands and specialized industrial exporters:
- Avery (Heritage Models): Avery still produces "Steelyard Type Mechanical" scales that are widely used in African and Asian agricultural sectors for their indestructible nature.
- Mansi Instruments / Alexandra Scale: Based in India (a global hub for mechanical weighing), these companies produce the XK-series and MIFW-series which are exported worldwide for scrap metal and bulk grain weighing.
- Sasco Weighing: A major supplier in the Middle East and Africa, providing NRCS-approved mechanical steelyards for trade use.
- Shri Ambika Scale: Known for custom-built mechanical weighbridges and heavy-duty steelyard platforms for mining and construction.
4. Maintenance & Calibration
To keep a steelyard scale "high quality," you must focus on the pivots:
- Cleaning: Dust and debris in the "V" bearings are the #1 cause of inaccuracy.
- No Oil: Never oil the knife edges or bearings; oil attracts grit which acts like sandpaper, dulling the precision points.
- Locking: Most 2026 models feature a Quick-Tumbler locking device. Always lock the arm before moving or loading the scale to prevent the knife edges from chipping.
5. Pricing (2026 Estimates)
Because they require significant amounts of high-grade steel and cast iron, they can be more expensive than cheap digital scales:
- Light Duty (100kg - 300kg): $350 – $550
- Heavy Duty (500kg - 1,000kg): $750 – $1,200
- Industrial Capacity (2,000kg+): $1,800 – $4,000+
