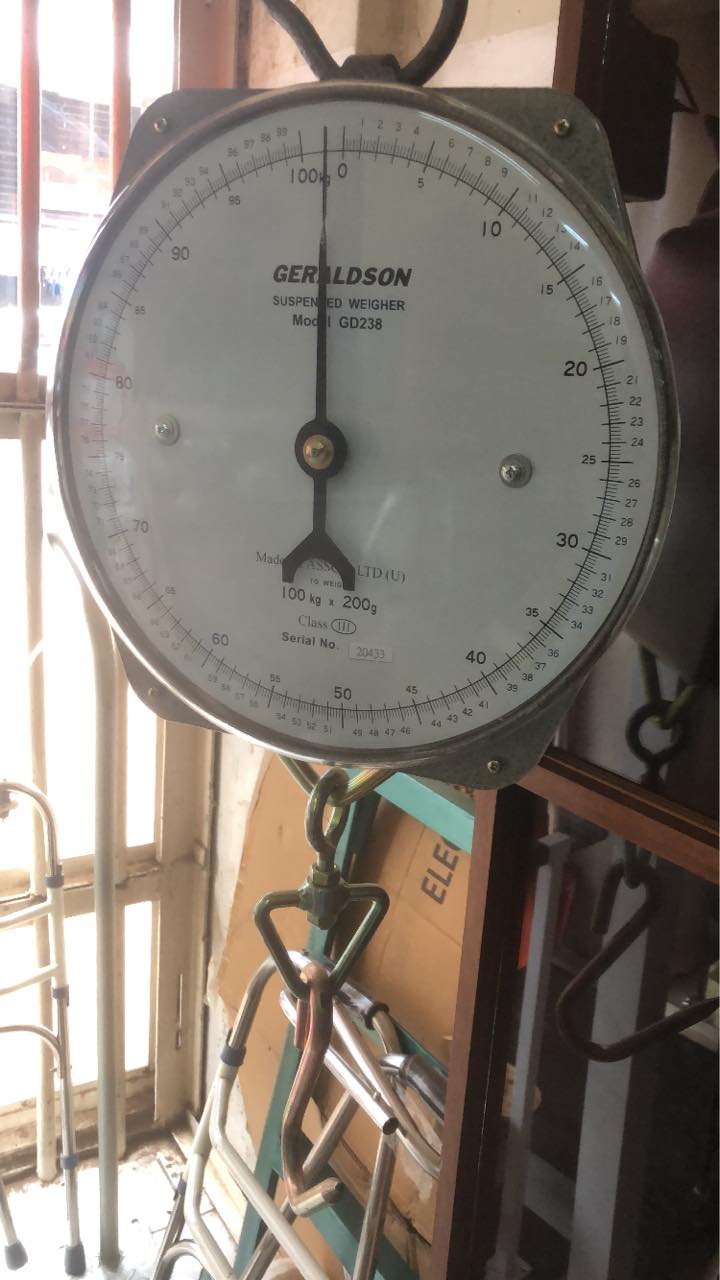

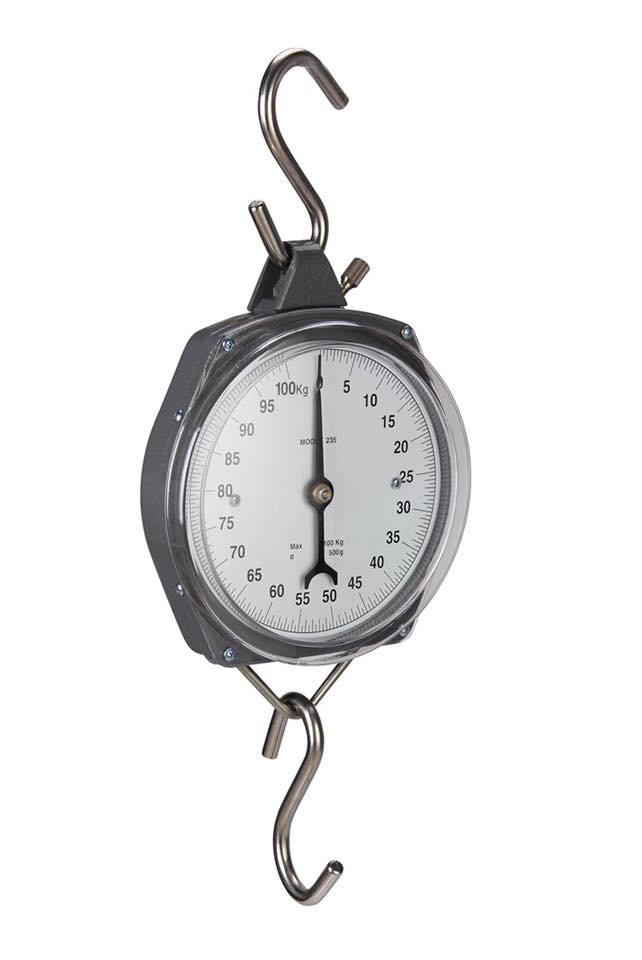

A Dial Mechanical Spring Scale is a non‑electronic, spring‑based weighing instrument that measures force or weight by the deflection of an internal spring. Weight is displayed via a large analog dial, making it ideal for environments where battery‑free operation, durability, and simplicity are priorities. These scales are widely used in workshops, markets, agricultural weighing, industrial checks, and field applications.
🧰 Key Features
📏 Precision Spring Weighing
- Uses a calibrated spring and lever mechanism to translate load into weight on a dial.
- Precision‑tuned springs offer repeatable mechanical accuracy within typical analog tolerances.
- No electronics, batteries, or power supply required — always ready to use.
🖮 Large Analog Dial
- Easy‑to‑read graduated dial displaying weight in preferred units (usually kg and lb).
- High‑visibility dial with clear markings makes it ideal for on‑site use.
🔩 Durable All‑Metal Construction
- Rugged metal body and hardware withstand shock, drops, and outdoor conditions.
- Heavy‑duty steel hooks and attachments ensure secure load handling.
⚙️ Reliable Mechanical Design
- Simple mechanism means fewer parts that can fail.
- Ideal for rough environments where electronic scales might be vulnerable.
📊 Typical Specifications
|
Specification |
Standard Values (Example) |
|
Scale Type |
Mechanical Spring Dial Scale |
|
Display |
Large analog dial |
|
Units |
kg and lb graduations |
|
Accuracy |
±1–2% full scale (typical mechanical) |
|
Capacity Range |
5 kg to 100 kg (common), up to 300 kg available |
|
Body Material |
Steel / reinforced metal |
|
Hook Material |
Steel with safety latch |
|
Mechanism |
Spring‑based tension/lever |
|
Power |
None (manual, no batteries) |
|
Operating Conditions |
Indoor/outdoor (ambient temp range) |
📌 Capacity & Use Cases
Mechanical dial spring scales are available in various capacities to suit different tasks:
🔹 5 – 25 kg — light household or shop weighing (packages, produce)
🔹 25 – 50 kg — workshop and cargo checking
🔹 50 – 100 kg — heavier materials and industrial loads
🔹 Up to 300 kg — heavy workshop and agricultural materials
Exact graduations and maximum loads depend on model and manufacturer.
📍 How It Works (Simple Mechanics)
- Load Applied: Place or hang the item on the hook.
- Spring Deflection: The internal spring stretches proportionally to the load.
- Dial Movement: A mechanical linkage moves the needle on the dial.
- Read Weight: Weight is read directly off the analog display — no power or setup needed.
🏭 Applications
Mechanical dial spring scales are commonly used in:
✔ Workshops — checking component weights
✔ Markets & Retail — weighing produce, goods, packages
✔ Agriculture — sacks, farm output weight checks
✔ Industrial Areas — quick onsite weight checks without electronics
✔ Field Use / Outdoors — portable and power‑free weighing
✔ Fishing / Outdoor Activities — weighing catches and game
📜 Advantages
✅ Power‑free Operation: Always works without batteries.
✅ Rugged & Durable: Excellent for tough conditions.
✅ Simple to Use: No setup — hang load and read off the dial.
✅ Affordable & Low Maintenance: Fewer parts to service than electronic scales.
📉 Limitations
⚠ Lower Digital Accuracy: Mechanical tolerances are wider than electronic load cells (≈±1–2%).
⚠ No Smart Functions: No tare, hold, or auto‑zero features — just direct weight reading.
⚠ Calibration Needs: Periodic mechanical calibration helps maintain consistent performance.
🛠 Maintenance Tips
- Keep springs and hooks clean and free of debris.
- Periodically verify accuracy with known weights.
- Store in a dry place to prevent corrosion.
- Inspect hooks and latches before each use for safety.
