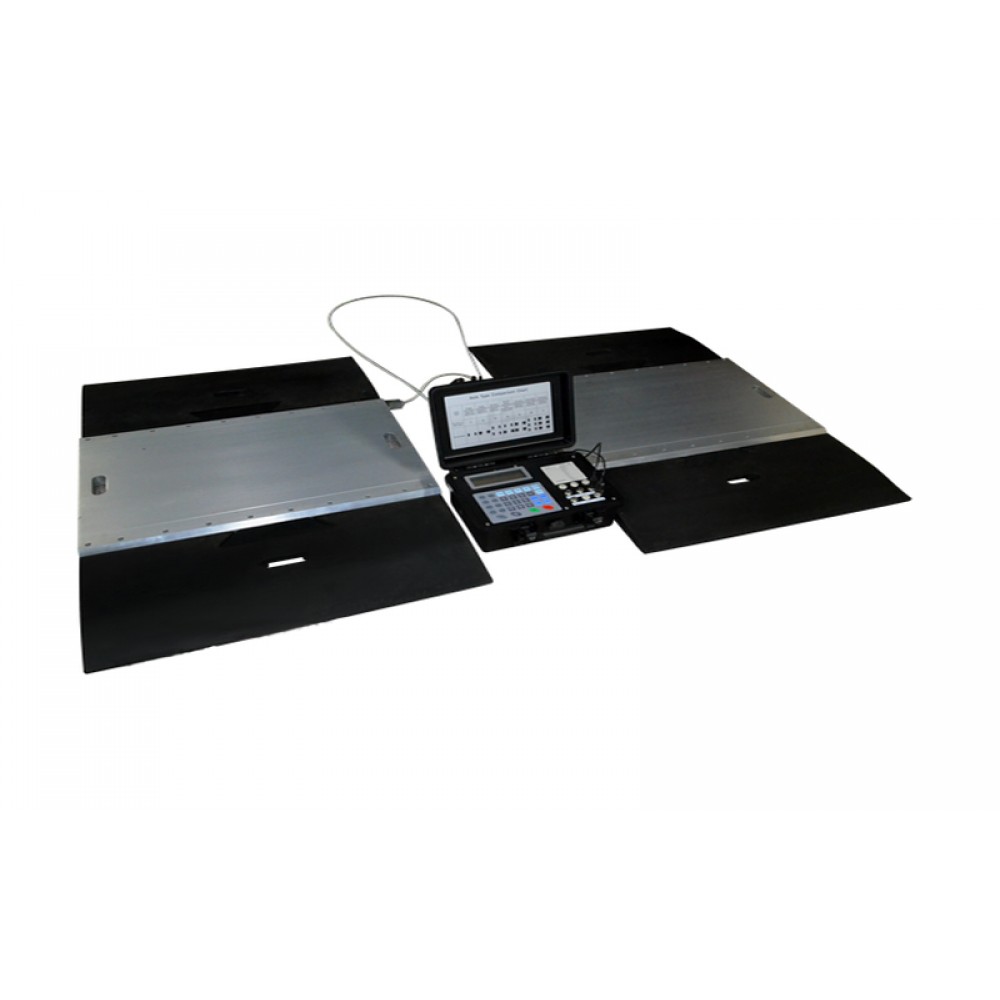

The Portable Axle Scale Indicator is a compact, high-performance weighing control unit designed for use with portable axle weigh pads and vehicle weighing systems. It provides fast, accurate processing of axle load data, enabling precise measurement of trucks, buses, and other heavy vehicles in field or roadside operations.
Built for mobility and rugged environments, this indicator is commonly used in transport enforcement, logistics operations, mining sites, and mobile weighing stations. It features a clear digital display, intuitive keypad controls, and advanced weighing algorithms to ensure stable and reliable readings even under harsh conditions.
Its lightweight and portable design makes it easy to transport and set up, while built-in rechargeable battery support allows for continuous operation in remote locations without direct power supply.
Key Features
- Compatible with portable axle weigh pads and truck scales
- High-speed digital weight processing system
- Clear LCD/LED display with backlight
- Multi-axle weighing and total vehicle weight calculation
- Tare, zero, and accumulation functions
- Rugged industrial-grade portable design
- Rechargeable battery with long operating time
- Overload and system error alerts
- Easy calibration and user-friendly interface
Specifications
Product Type: Portable Axle Scale Indicator
Display Type: LCD or LED (backlit, high visibility)
Input Channels:
- 2 to 8 load cell inputs (model dependent)
Weighing Functions:
- Single axle weight
- Total vehicle weight
- Accumulated weight display
Accuracy: High precision (±0.1% to ±0.5% FS depending on system setup)
Resolution: 1 kg / 5 kg / 10 kg selectable
Power Supply:
- AC 110–240V
- Built-in rechargeable battery (6V/12V system depending on model)
Battery Life: 20–50 hours continuous use
Operating Temperature: -20°C to +60°C
Connectivity Options:
- RS232 serial port
- USB (optional)
- Wireless transmission (optional)
Housing Material: Reinforced ABS or aluminum alloy casing
Protection Level: Industrial-grade dust and shock resistance
Calibration: Digital calibration with external weight or software setup
