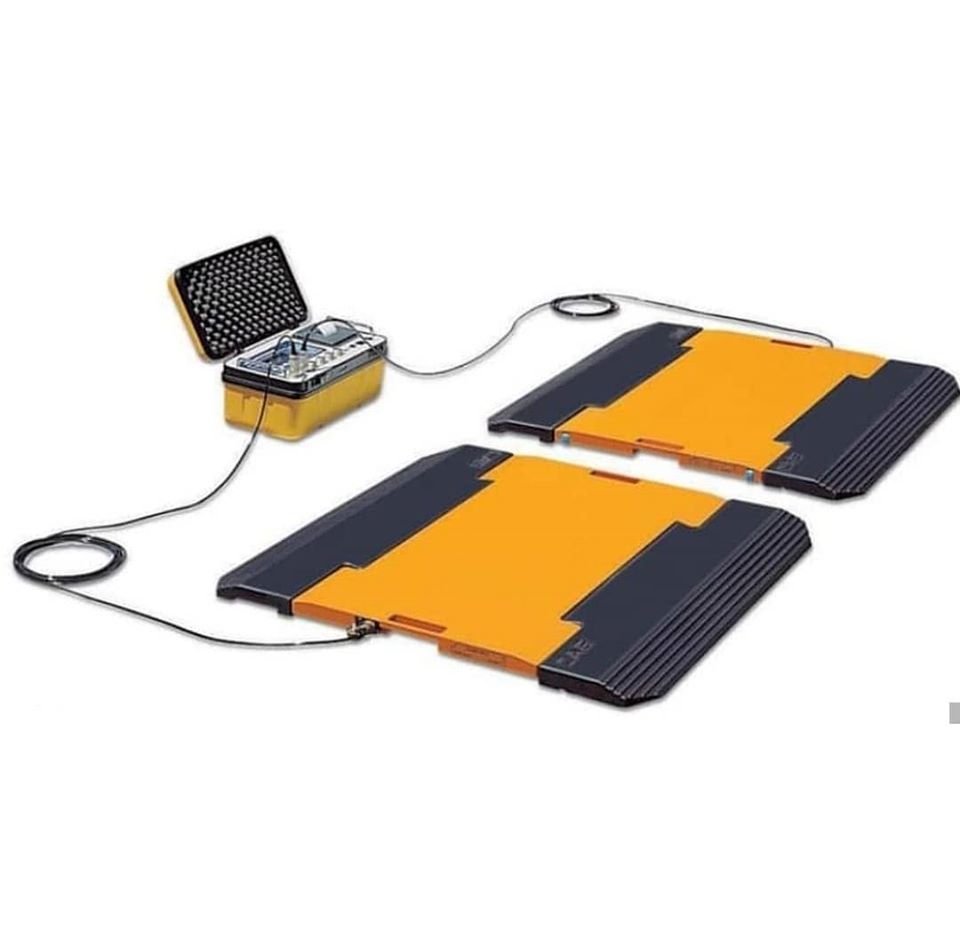

A portable axle vehicle weighing truck scale is a compact, high-precision weighing system designed to measure the weight of individual vehicle axles or total vehicle weight quickly and accurately without requiring a permanent installation.
It is widely used in road safety enforcement, logistics control, mining operations, construction sites, and mobile inspection units where fast deployment and reliable overload detection are required.
The system typically consists of portable weigh pads (or plates), a digital indicator, and connecting cables or wireless modules, allowing operators to weigh vehicles anywhere with a stable surface.
Key Features
- Portable and easy to deploy anywhere
- Measures axle weight and total vehicle weight
- High-accuracy strain gauge load cell technology
- No permanent foundation required
- Quick setup and dismantling (5–15 minutes)
- Heavy-duty design for trucks, trailers, and buses
- Digital indicator with clear weight display
- Rechargeable battery-powered operation
- Optional wireless data transmission system
- Suitable for roadside and field operations
Technical Specifications
1. Weighing Capacity
- Maximum Capacity: 20T / 40T / 60T / 100T options available (system dependent)
- Axle Load Range: 5–20 tons per axle (model dependent)
- Accuracy: ±0.3% to ±1% (depending on calibration and surface conditions)
2. Weighing Pads / Platforms
- Type: Portable axle weighing pads
- Material: High-strength aluminum alloy or steel
- Surface: Anti-slip textured coating
- Design: Lightweight, reinforced structure for field use
- Quantity: 2 pads (single axle measurement) or 4 pads (full vehicle weighing)
3. Load Cells
- Type: High-precision strain gauge load cells
- Protection Rating: IP67–IP68 (dustproof and waterproof)
- Construction: Sealed alloy steel or stainless steel housing
- Calibration: Factory calibrated with field adjustment option
4. Indicator System
- Display Type: LCD / LED digital indicator
- Functions:
- Axle weight measurement
- Total vehicle weight calculation
- Overload alert system
- Data storage (optional)
- Power Supply: Rechargeable battery (8–24 hours operation)
- Charging: AC 110V / 220V adapter
5. Communication & Data Options
- Wired connection (standard)
- Wireless RF / Bluetooth (optional)
- USB data export
- Optional integration with weighbridge management software
6. Operating Conditions
- Temperature Range: -20°C to +60°C
- Humidity: ≤90% RH (non-condensing)
- Surface Requirement: Flat and stable ground for best accuracy
7. Portability & Setup
- Installation Time: 5–15 minutes
- Transport: Portable carry case included
- Setup Requirement: No civil works or fixed installation needed
- Deployment: Single-person or two-person handling
