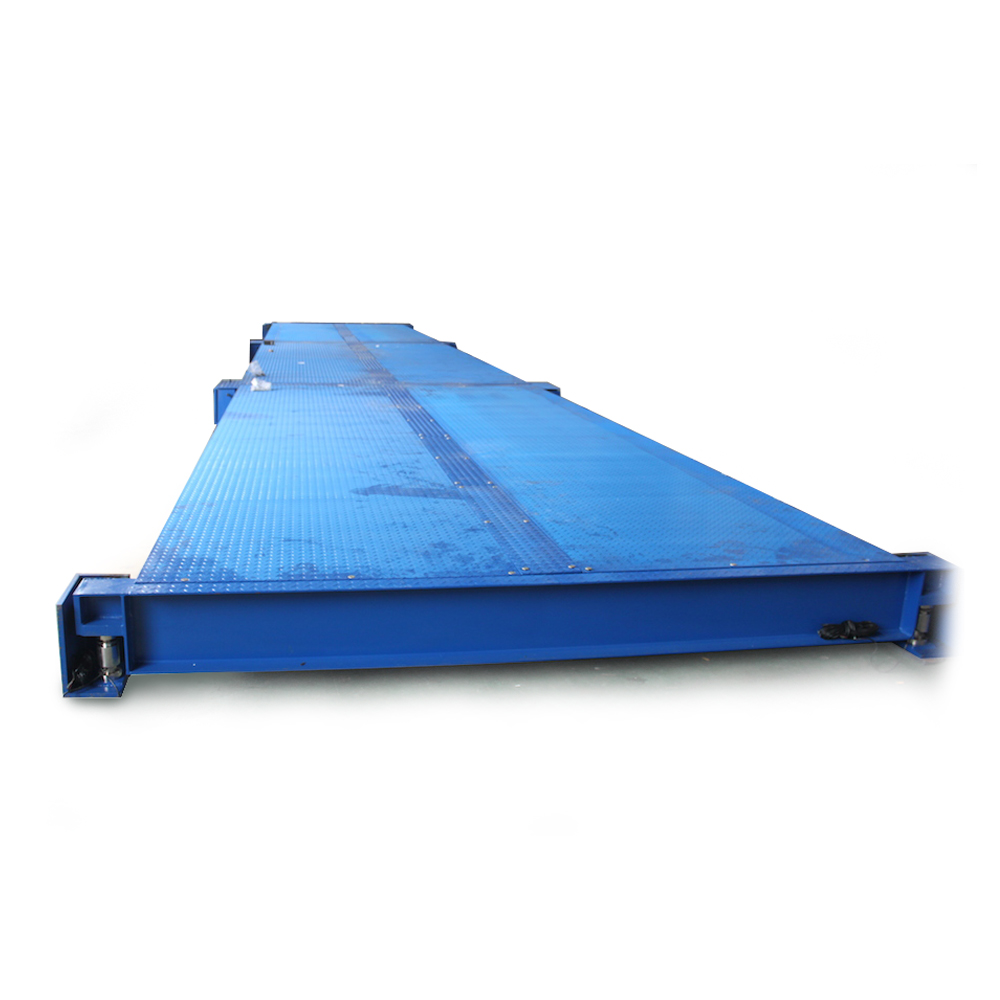

The Pitless Portable Weighbridge from Accurate Weighing Scales Ltd is a flexible, high-performance truck weighing solution designed for fast deployment and easy relocation. Unlike traditional pit-mounted systems, this pitless weighbridge requires no excavation or civil works, making it ideal for temporary sites, remote locations, construction yards, mining operations, and logistics checkpoints.
This portable weighbridge is engineered for durability and accuracy, combining heavy-duty modular platforms with precision load cell technology and advanced digital electronics. It offers reliable truck weight measurement, efficient throughput, and easy integration with data systems—making it a smart choice for businesses that need a mobile weighing solution without compromising on performance.
Key Features
🚚 Portable & Pitless Design
- No pit required — quick installation on a flat surface
- Easy to move and re-install at different locations
- Ideal for temporary or remote weighing needs
💪 Heavy-Duty Construction
- Robust modular platform with reinforced steel frame
- Anti-slip deck surface for safety
- Designed for heavy truck loads and frequent use
📊 Accurate & Reliable Weighing
- Precision load cells for stable and repeatable readings
- Suitable for gross and net weight measurement
- Fast response time for efficient operations
🖥 Advanced Digital Electronics
- Digital weight indicator with backlit display
- Multiple units (kg, tonne, lb)
- USB / RS232 / Ethernet output
- Optional Bluetooth/Wi-Fi connectivity
- Optional printer for weight tickets
🧰 Easy Setup & Operation
- Quick setup with minimal site preparation
- Modular design for easy transportation and assembly
- Simple user interface for quick operation
Technical Specifications
|
Specification |
Details |
|
Product Name |
Pitless Portable Weighbridge |
|
Installation Type |
Pitless (Surface Mounted, no excavation required) |
|
Platform Length Options |
6 m, 9 m, 12 m, 15 m (custom lengths available) |
|
Platform Width |
Typically 3 m (custom widths available) |
|
Maximum Capacity |
80,000 kg / 100,000 kg / 120,000 kg (model dependent) |
|
Accuracy Class |
OIML Class III (±0.5% or better) |
|
Deck Construction |
Reinforced structural steel with anti-slip surface |
|
Framework |
Welded I-beam structure |
|
Load Cells |
Sealed precision alloy steel load cells |
|
Indicator Display |
Digital LCD/LED with backlight |
|
Units of Measure |
kg, tonne, lb (selectable) |
|
Data Output |
USB / RS232 / Ethernet (optional wireless) |
|
Power Supply |
AC mains (110–240 V) + optional battery backup |
|
Operating Temperature |
–10 °C to +50 °C |
|
Environmental Protection |
Corrosion-resistant coating & sealed load cells |
|
Calibration |
Certified calibration included |
Applications
✔ Temporary truck weighing sites
✔ Construction and mining operations
✔ Remote logistics checkpoints
✔ Agricultural and commodity yards
✔ Port and terminal operations
Why Choose Accurate Weighing Scales Ltd Pitless Portable Weighbridge?
- No Civil Works Required — saves time and cost
- Fast Deployment — ready for use in minimal time
- Reliable Accuracy — precision weighing for compliance and operations
- Portable & Flexible — move between sites as needed
- Professional Support — installation, calibration, and after-sales service
