Pit Type Weighbridge for Accurate Truck Weighing

The Pit Type Weighbridge from Accurate Weighing Scales Ltd is a precision-engineered vehicle weighing system designed for accurate and reliable truck weight measurement in industrial environments. Built for permanent installation, this weighbridge is ideal for high-traffic applications such as logistics centers, manufacturing plants, ports, mining sites, and commercial weigh stations.

By Admin19 March 202623 min read 110 views

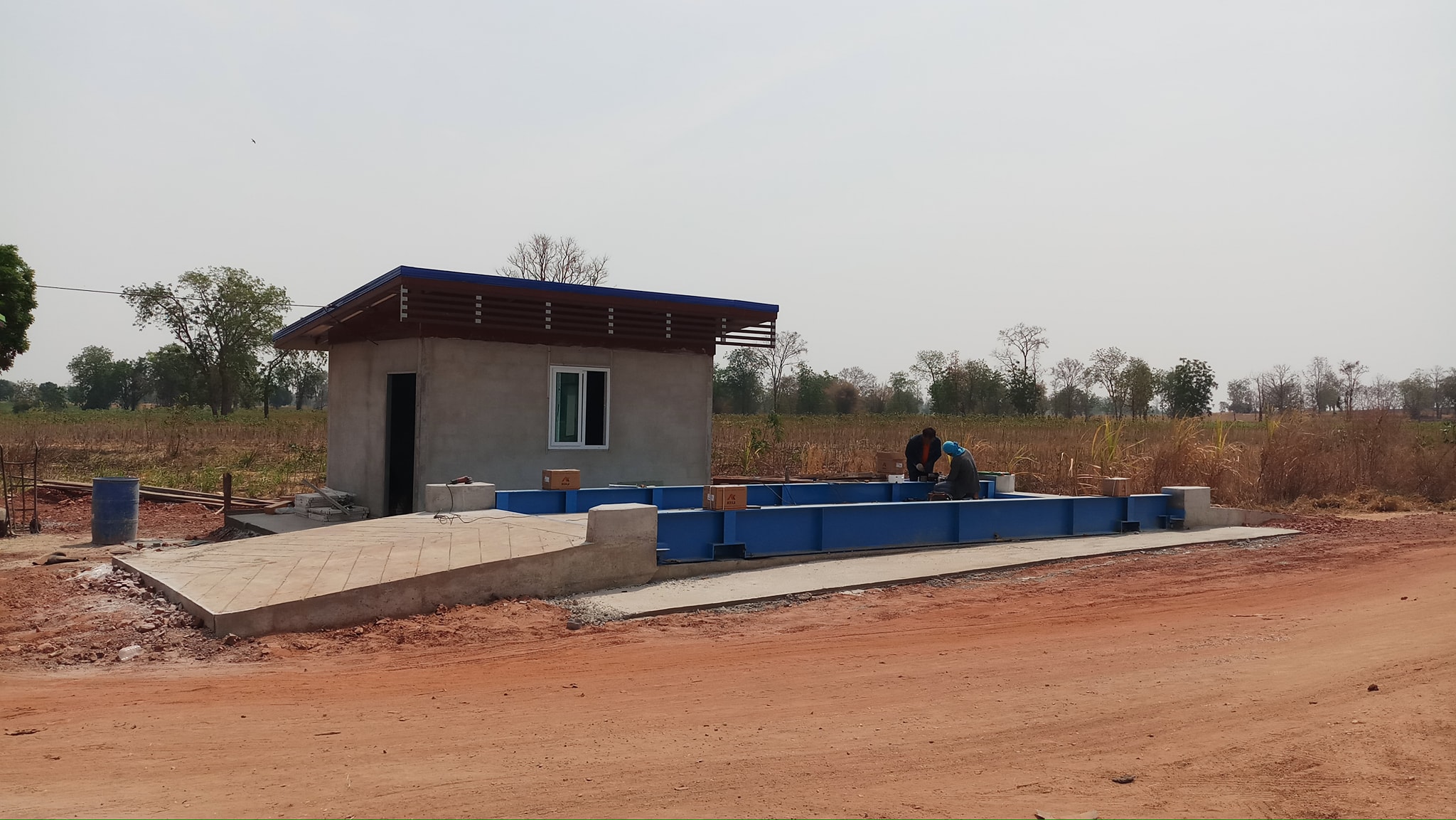

Pit Type Weighbridge for Accurate Truck Weighing

The Pit Type Weighbridge from Accurate Weighing Scales Ltd is a precision-engineered vehicle weighing system designed for accurate and reliable truck weight measurement in industrial environments. Built for permanent installation, this weighbridge is ideal for high-traffic applications such as logistics centers, manufacturing plants, ports, mining sites, and commercial weigh stations.

The pit-mounted design provides a flush, level deck that integrates seamlessly into the ground, offering safer vehicle movement, efficient loading operations, and a clean site appearance. Constructed with heavy-duty steel, advanced load cell technology, and robust digital electronics, this weighbridge delivers stable and repeatable readings, ensuring compliance with legal weight limits and improving operational efficiency.

Whether you require gross vehicle weight, axle load analysis, or integration with reporting systems, the Pit Type Weighbridge provides dependable performance and long-term durability for demanding industrial weighing needs.


Key Features

βœ… Permanent Pit-Mounted Installation

  • Flush installation into the ground for a level surface
  • Ideal for high traffic and continuous use
  • Enhances safety and operational flow

🧱 Heavy-Duty Structural Design

  • Reinforced steel framework with welded I-beam support
  • Designed for long-lasting performance under heavy truck loads
  • Anti-slip deck surface for safety

πŸ“ High Accuracy & Reliable Performance

  • Precision load cells for consistent and repeatable measurements
  • Stable readings even under frequent heavy usage
  • Ideal for compliance, reporting, and payload control

πŸ–₯ Advanced Digital Electronics

  • High-resolution digital indicator with backlit display
  • Data export via USB/RS232/Ethernet
  • Optional printer and software integration for records

🌦 Built for Tough Environments

  • Corrosion-resistant finish for outdoor use
  • Sealed load cells protected against dust and moisture
  • Suitable for harsh conditions like mining and ports

Technical Specifications

Specification

Details

Product Name

Pit Type Weighbridge

Installation Type

Pit Mounted (Flush Level Deck)

Platform Length Options

6 m, 9 m, 12 m, 15 m (custom lengths available)

Platform Width

Typically 3 m (custom widths available)

Maximum Capacity

80,000 kg / 100,000 kg / 120,000 kg (model dependent)

Accuracy Class

OIML Class III (±0.5% or better)

Deck Construction

Reinforced structural steel with anti-slip finish

Framework

Welded I-beam structure

Load Cells

Sealed precision alloy steel load cells

Indicator Display

Digital LCD/LED with backlight

Units of Measure

kg, tonne, lb (selectable)

Data Output

USB / RS232 / Ethernet (optional wireless)

Power Supply

AC mains (110–240 V) with optional battery backup

Operating Temperature

–10 °C to +50 °C

Environmental Protection

Corrosion-resistant coating & sealed load cells

Calibration

Certified calibration included


Applications

βœ” Truck and trailer weight monitoring
βœ” Industrial logistics & freight terminals
βœ” Mining and quarry sites
βœ” Ports and customs checkpoints
βœ” Manufacturing and distribution facilities


Why Choose a Pit Type Weighbridge from Accurate Weighing Scales Ltd?

  • Accurate & Repeatable Results for legal compliance and reporting
  • Long-Term Durability built for heavy industrial use
  • Space-Saving Installation with a clean, flush deck
  • Professional Installation & Calibration for reliable performance
  • Advanced Data Integration for modern operations
