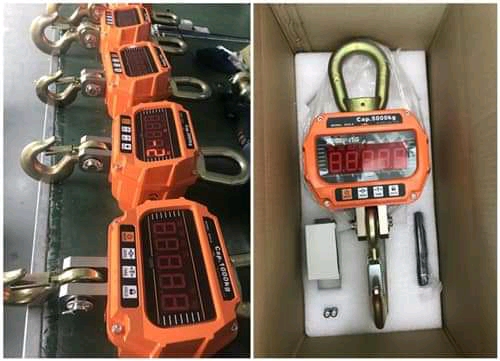

OCS Factory Use Digital Hanging Crane Scale – Specifications & Features
A digital hanging crane scale from the OCS series is engineered for industrial, warehouse, manufacturing, logistics, and material handling environments. It combines precise digital load measurement, portable design, and durable construction — perfect for weighing loads directly from overhead cranes, hoists, or beams.
⚖️ Capacity & Load Performance
- Available Capacities: OCS digital crane scales are available in a wide range, typically 50 kg up to 10,000 kg or more depending on model. Common factory use models include 100 kg, 300 kg, 500 kg, 1000 kg (1 t), and higher.
- Resolution / Division: Varies by capacity — e.g., 0.05 kg at low capacities, 0.1–0.5 kg at mid capacities, and higher divisions for larger capacities.
- Accuracy Class: Meets OIML Class III (industrial precision) for reliable weight readings.
- Tare Range: Up to 100% of full scale (deduct container/fixture weight).
- Zero Range: Approx. 4% of full scale.
- Safe Overload: Typically around 120% of full scale.
- Ultimate Overload: Can tolerate up to 400% of full scale without permanent damage on many models.
🖥️ Display & Operation
- Display Type: Bright LED or LCD digital display (often ~30 mm digits) for easy visibility at a distance.
- Weight Units: Switchable between kg and lb; some models also support N (newtons).
- Smart Functions: Includes Zero, Tare, Hold / Peak Hold, Unit Switch, Auto Power‑Off, Overload Warning/Alarm.
- Remote Control (Optional): Many factory models support infrared remote operation for safe use from a distance.
🔋 Power & Battery
- Battery: Rechargeable lead‑acid or battery pack (e.g., 6V/4–10 Ah) or AA battery options depending on model.
- Battery Life: Typically >80–120 hours continuous use on a full charge.
- Low Battery Indicator: Alerts user before shutdown.
- Charger / Adapter: Often supplied with a DC adapter (e.g., 9 V DC) for battery charging.
🛠️ Construction & Durability
- Housing: Durable aluminum alloy or cast metal enclosure with protective finishing for industrial use.
- Hooks & Shackles: High‑strength alloy steel hooks and stainless steel shackles for secure load attachment.
- Operating Temperature: Designed to work reliably in typical industrial ranges (approx. –10 °C to +40 °C).
- Portable Design: Compact, lightweight body makes it easy to move between cranes or workstations.
📊 Summary Technical Specifications (Example OCS Digital Crane Scale)
|
Feature |
Specification |
|
Capacity Range |
50 kg – 10,000 kg† (varies by model) |
|
Resolution / Division |
0.02 kg – 5 kg (depending on capacity) |
|
Display |
LED / LCD digital display |
|
Units |
kg / lb (switchable) |
|
Accuracy Class |
OIML III |
|
Battery Power |
Rechargeable or AA batteries |
|
Battery Life |
>80–120 h |
|
Functions |
Zero, Tare, Hold, Unit Switch, Overload Alarm |
|
Safe Overload |
~120% F.S. |
|
Operating Temp. |
–10 °C to +40 °C |
🏭 Typical Factory & Industrial Uses
OCS factory use digital hanging crane scales are suitable for:
- Warehouses: Weighing pallets, packages, and inventory overhead.
- Manufacturing Plants: Checking material weight before processing or assembly.
- Logistics & Shipping Yards: Verifying load weights prior to transport.
- Construction Sites: Measuring beams, steel, and building materials.
- Agriculture & Commodity Handling: Handling bulk produce and sacks.
🧠 Why Choose an OCS Digital Crane Scale
- Accurate & Reliable: Precision load cells and OIML III compliance ensure trustworthy results.
- Versatile: Works with multiple weight units and smart functions for diverse industrial tasks.
- Portable & Durable: Designed to withstand demanding environments while remaining easily movable.
- User‑Friendly: Simple buttons, remote optional, and clear digital display make operation straightforward.
†Exact capacities, divisions, and features vary by specific OCS model and manufacturer variant (e.g., OCS‑S1, OCS‑G, OCS‑10A).
