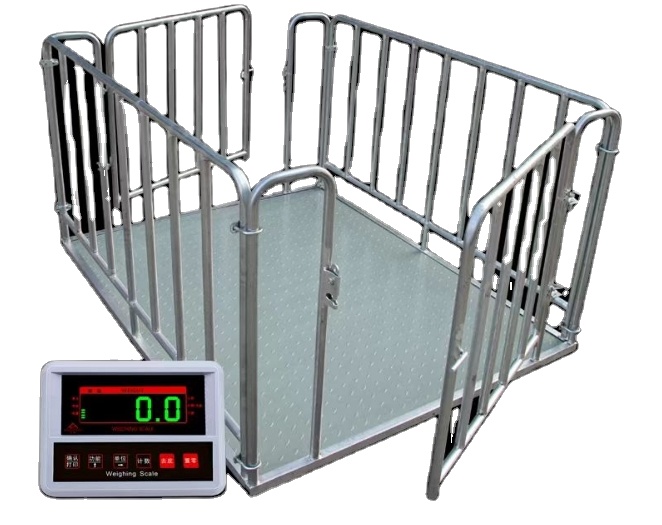

A livestock platform scale is a heavy-duty weighing system designed to measure the weight of farm animals such as cattle, sheep, goats, pigs, and other livestock. These scales are essential for farms, veterinary clinics, livestock markets, and abattoirs to monitor animal growth, manage feeding programs, determine medication dosage, and ensure fair livestock trading.
The platform scale features a robust steel frame and high-precision load cells that provide stable and accurate readings, even if animals move during weighing. Most models include non-slip checker plate platforms, protective rails, and entry/exit gates to guide animals safely. Digital indicators display weights clearly and include functions such as tare, zero, hold, and accumulation. Portable battery-powered models allow use in remote areas, while AC-powered models are suitable for permanent installations.
Livestock platform scales improve farm efficiency by providing quick and reliable weight data for proper livestock management, feeding optimization, and livestock trading decisions.
Specifications
1. Weighing Capacity
- 300 kg – 500 kg (small livestock: goats, sheep, pigs)
- 1000 kg – 2000 kg (medium to large cattle)
- Heavy-duty models up to 5000 kg for large livestock operations
2. Platform Size
- 1.0 m × 1.0 m (small animals)
- 1.2 m × 1.5 m (medium livestock)
- 1.5 m × 2.0 m (cattle or larger stock)
- Custom platform sizes available
3. Construction
- Heavy-duty carbon steel or mild steel frame
- Powder-coated or galvanized finish for durability
- Non-slip checker plate platform for safe animal handling
4. Load Cell System
- Four high-precision alloy steel load cells
- Waterproof and dust-resistant sensors
- Overload protection for long-lasting performance
5. Digital Indicator
- Large LCD or LED backlit display
- Clear and easy-to-read weight display
- Stainless steel or waterproof housing
6. Functions
- Zero function
- Tare function
- Hold function
- Accumulation / total weight
- Animal weighing mode for moving livestock
7. Power Supply
- Rechargeable battery (for portable models)
- AC power adapter (110 V / 220 V)
- Battery operation up to several hours depending on model
8. Structural Features
- Protective side rails or cage
- Entry and exit gates for controlled animal movement
- Low-profile ramps for easy access
9. Accuracy
- Readability: 0.5 kg – 1 kg increments
- Accuracy class: OIML Class III
10. Applications
- Livestock farms (cattle, sheep, goats, pigs)
- Veterinary clinics
- Livestock markets
- Slaughterhouses and abattoirs
- Agricultural research centers
Advantages
- Accurate weight measurement for livestock
- Durable construction for harsh farm environments
- Non-slip platform ensures animal safety
- Portable options for mobile farms
- Supports farm productivity and efficient livestock management
