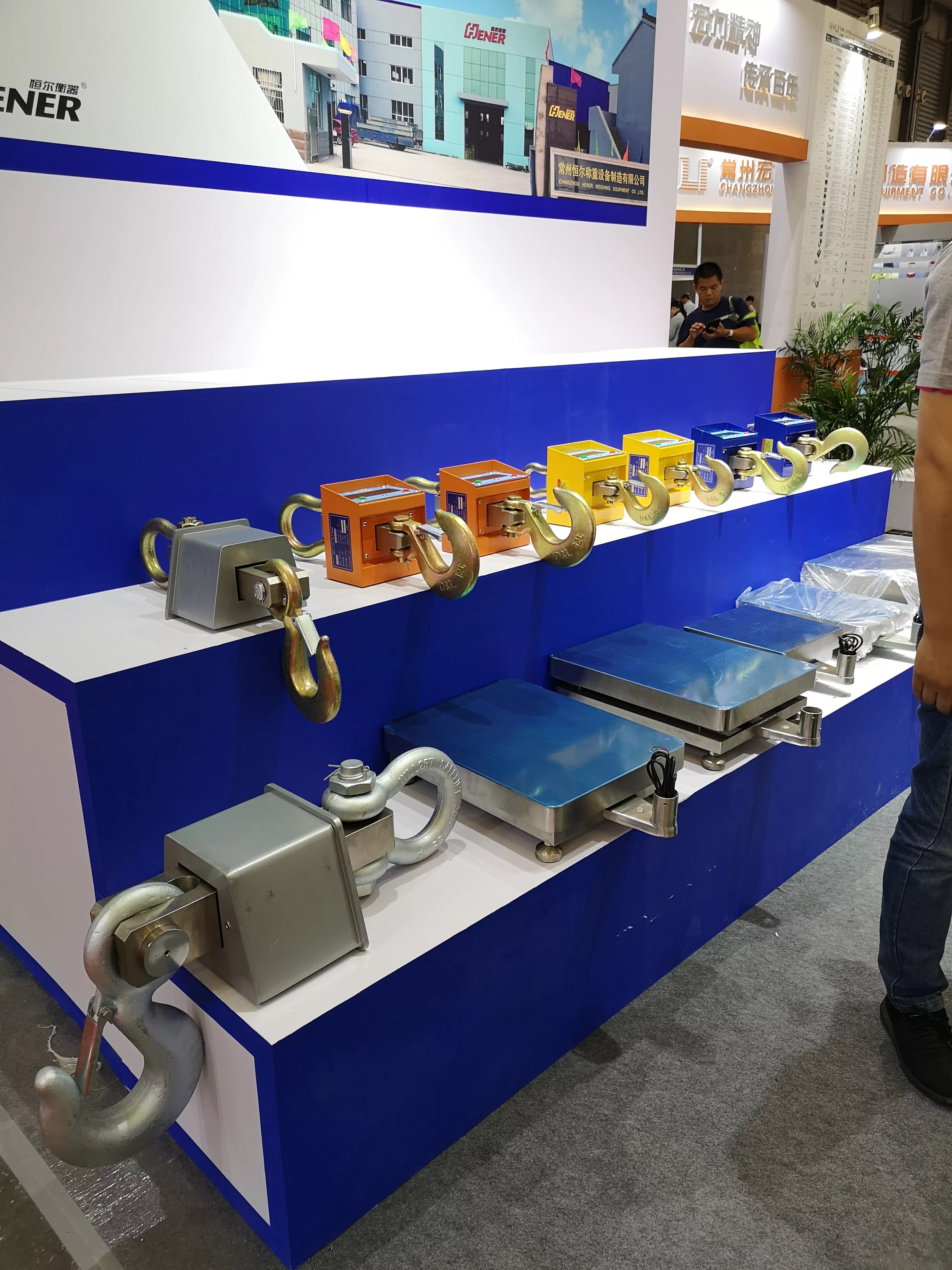

Industrial hanging scales (also called digital crane scales) are heavy‑duty electronic weighing instruments that measure the weight of suspended loads directly from cranes, hoists, or lifting points. They are essential wherever large items — like machinery components, bulk materials, pallets, containers, or engineered products — need accurate in‑place weighing without platforms.
⚖️ Key Specification Categories
🏷️ Capacity & Load Handling
Industrial hanging scale models cover a wide range of load capacities:
- Light to Medium‑Duty: ~100 kg – 500 kg capacities, suitable for workshops, agricultural weights, and lighter industrial tasks.
- Heavy‑Duty Industrial: 1 ton to 10 tons (1,000 kg – 10,000 kg) and beyond — ideal for factories, warehouses, shipping yards, and heavy manufacturing.
- Extra High Capacity: Some models support 20 t, 30 t, 50 t for very large industrial or port/shipyard applications.
Each model’s resolution/division (smallest increment it can display) is scaled with capacity — e.g., 1 kg for 1‑3 t units, 2 kg for 5 t, and 5 kg for 10 t.
🖥️ Display & Control
- Digital Display: Clear LED or backlit LCD screen with large digits for easy reading from a distance, even in poorly‑lit environments.
- Units: Typically supports multiple measurement units such as kg and lb — switchable.
- Remote Control (Optional): Many industrial models offer infrared or wireless remote operation allowing safe operation at a distance.
🔋 Power & Operation
- Battery‑Powered: Rechargeable battery packs (e.g., 6 V/4 Ah or larger) give long operating times, enabling use in remote or field conditions without mains power.
- Low‑Battery & Auto Off: Alerts when battery runs low; automatic shut‑off extends battery life.
- Operating Environment: Designed to operate across typical industrial temperature ranges (e.g., –10 °C to +40 °C).
🧠 Weighing & Safety Functions
Industrial digital hanging scales include essential weighing features:
✔ Tare / Net Weight: Ability to subtract container, sling, or hook weight.
✔ Zero / Auto‑Zero Tracking: Keeps baseline stable before measurement.
✔ Hold / Peak Hold: Locks the weight display once stable for easy recording.
✔ Overload Alarm / Protection: Warns if a load exceeds safe rating and helps prevent damage.
Many models are rated for 125 % safe overload and can tolerate up to 400 % of rated capacity without immediate failure.
🛠️ Construction & Durability
- Housing: Heavy‑duty cast aluminum or alloy body for impact resistance in industrial environments.
- Hook & Shackle: Reinforced steel or stainless steel hooks with safety catch for secure load attachment.
- Compact Design: Minimizes headroom loss when hung from cranes or beams, keeping the weighing setup efficient.
📊 Typical Technical Specifications (Example Line‑Up)
|
Feature |
Value / Notes |
|
Capacity Range |
100 kg – 50 ton+ (varies by model) |
|
Display |
LED / Backlit LCD |
|
Units |
kg / lb (unit switch) |
|
Power |
Rechargeable battery (80 h+ typical) |
|
Weighing Functions |
Tare, Hold, Auto‑Zero, Overload Alarm |
|
Safe Overload |
~125 % of rated capacity |
|
Ultimate Overload |
~400 % of rated capacity |
|
Operating Temp. |
~–10 °C to +40 °C |
🏭 Applications
Industrial hanging scales are widely used for:
✔ Factories & Manufacturing: Weigh machinery parts, assemblies, and raw materials.
✔ Warehouses & Logistics: Check cargo, pallets, containers before movement.
✔ Construction Sites: Weigh beams, materials, and structural loads.
✔ Metal & Scrap Yards: Measure bundles of metal, plates, and industrial scrap.
✔ Ports / Shipping: Weigh freight containers and dock loads.
✔ Agriculture & Bulk Handling: Weigh produce, feed sacks, and bulk materials.
🧠 Benefits of Industrial Hanging Scales
- Accurate Digital Readings: Precision load cells improve reliability.
- Portable & Flexible: Battery operation enables use anywhere.
- Rugged & Durable: Built to handle tough conditions and repeated use.
- Safety Features: Overload alerts and tare functions enhance operation safety.
📌 Summary
Industrial loads hanging scales (digital crane scales) are heavy‑duty electro‑mechanical weighing devices built to handle suspended load measurement efficiently and safely across a wide range of professional applications. With robust construction, smart functions, and adaptable capacity options from hundreds of kilograms to tens of tons, they help businesses improve weighing accuracy, operational safety, and workflow efficiency in demanding industrial environments.
