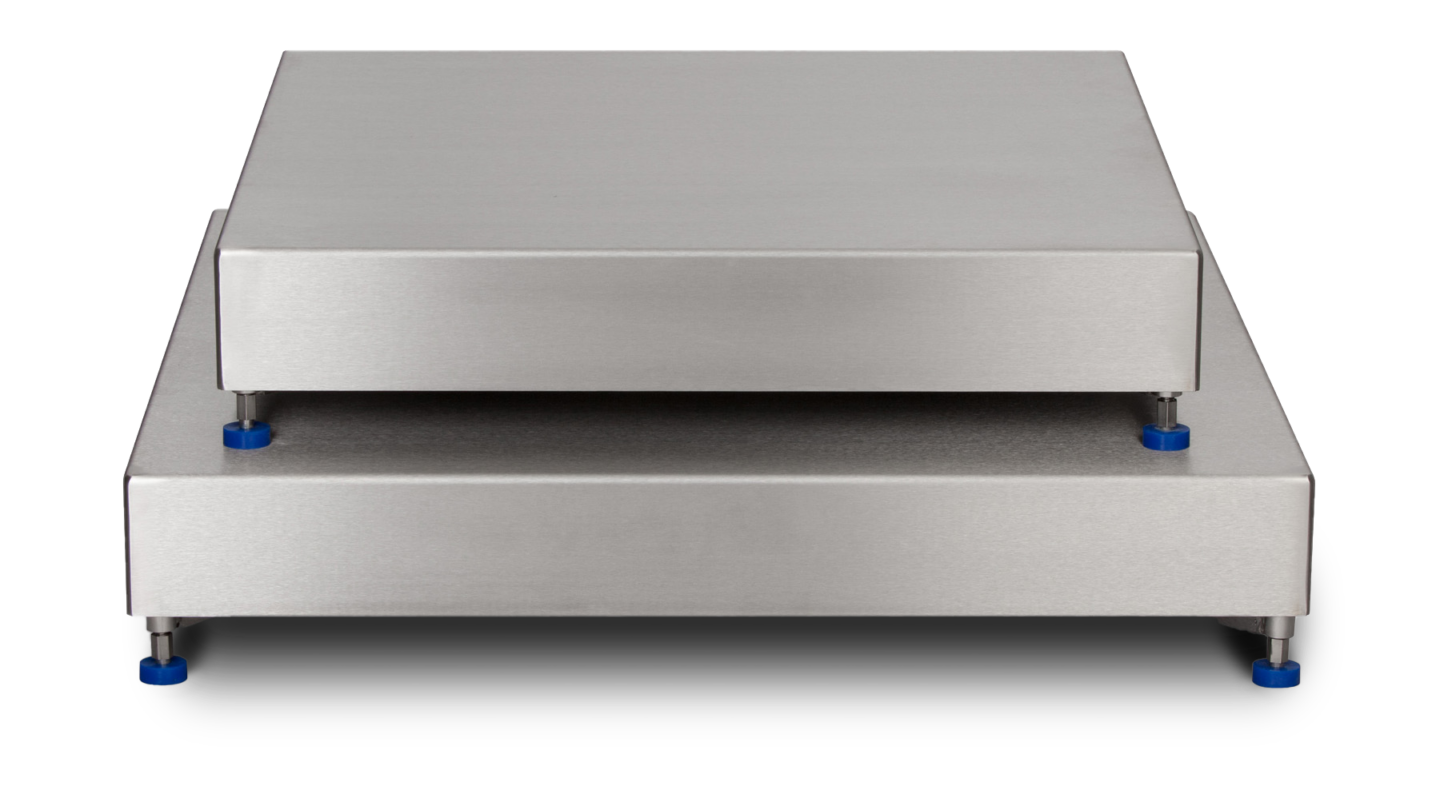

Heavy-duty digital platform scales are the workhorses of the industrial world, engineered to provide high-precision measurements for loads ranging from 1 ton to 10 tons (and beyond).
In 2026, these systems have evolved to include smarter connectivity (IoT), specialized materials for harsh environments, and enhanced portability.
1. Technical Specifications by Capacity
Depending on your operational needs, the internal sensors (load cells) and platform thickness vary significantly.
|
Capacity |
Readability (Accuracy) |
Common Platform Sizes |
Typical Use Case |
|
1 Ton (1,000 kg) |
100 g – 200 g |
1m x 1m / 1.2m x 1.2m |
Standard Euro pallets, drums, and crates. |
|
3 Tons (3,000 kg) |
500 g |
1.2m x 1.2m / 1.5m x 1.5m |
Industrial machinery, chemical totes, and large pallets. |
|
5-10 Tons |
1 kg – 2 kg |
1.5m x 1.5m / 2m x 2m |
Scrap metal, construction materials, and heavy logistics. |
2. Advanced Features of 2026 Models
Modern heavy-duty scales focus on more than just weight; they are designed to integrate with warehouse management systems (WMS).
- Connectivity & IoT: Most industrial units now feature RS232, USB, Bluetooth, or Wi-Fi as standard. This allows weight data to be sent directly to ERP/CRM software or cloud-based inventory trackers.
- Protection Classes:
- IP65: Dust-tight and protected against water splashes (dry warehouse).
- IP67/68: Submersible load cells; essential for food processing or outdoor use where washdowns occur.
- IP69K: High-pressure steam cleaning resistance (medical/pharmaceutical).
- Smart Indicators: High-visibility LED or LCD displays with "Alibi Memory" (electronic archiving of verified weights) and "Peak Hold" for measuring moving loads.
3. Specialized Form Factors
- U-Type Frame Scales: Shaped like a "U" to allow a pallet jack to drive directly into the center of the scale without a ramp.
- Low-Profile "Drive-Through": Features built-in ramps with a platform height of only 35mm–45mm, making it effortless to roll trolleys or drums on/off.
- Weigh Beams: Two separate heavy-duty bars that can be placed any distance apart to weigh oversized items like long pipes or large tanks.
- Pit-Mounted Scales: Installed flush with the floor so that vehicles or personnel can walk over them without any obstruction.
4. Material Selection Guide
- Powder-Coated Mild Steel: The most cost-effective choice for general warehousing, shipping, and receiving.
- Stainless Steel (304/316): Mandatory for corrosive environments, chemical processing, and food-grade facilities to prevent rust and contamination.
- Galvanized Steel: A middle-ground option for outdoor or humid environments where mild steel would fail but full stainless is too expensive.
5. Buying Tip: Legal for Trade (OIML/NTEP)
If you are buying or selling goods based on the weight recorded by the scale, the unit must be "Trade Approved" (Class III). These scales undergo stricter testing and are "stamped" by government metrology departments to ensure consumer protection.
