Crane Scale

Fast Stabilizing Hanging Weight Scale

The Heavy-Duty Weight Crane Scale is a robust, high-capacity digital hanging scale designed for industrial and commercial operations.

By Admin16 May 20269 min read 76 views
Fast Stabilizing Hanging Weight Scale

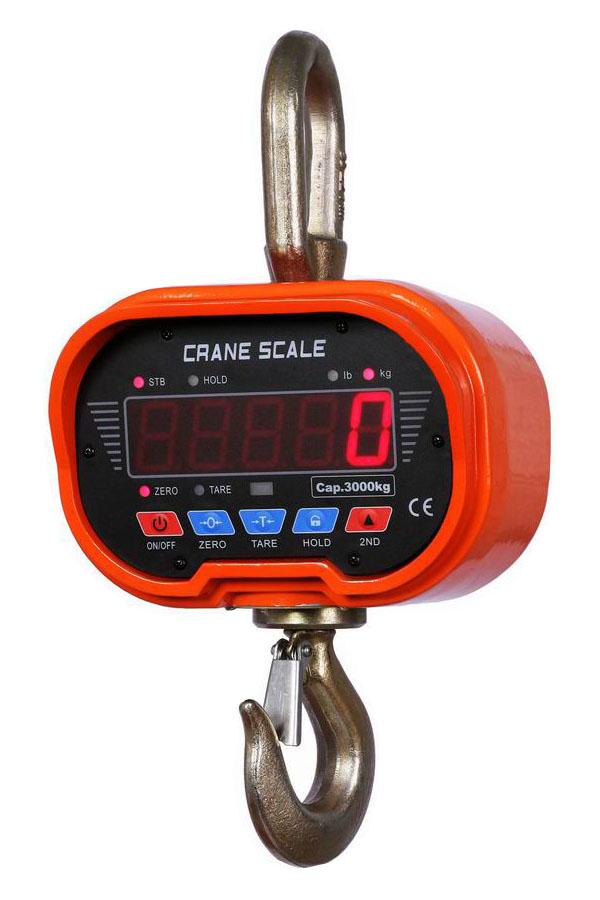

A Heavy‑Duty Digital Crane Hanging Weight Scale is a rugged, electronic hanging weighing device designed to accurately measure suspended loads in challenging industrial environments. These scales combine precision digital sensors, large backlit displays, and durable construction — making them ideal for weighing heavy materials that aren’t suitable for floor platforms.


⚖️ Capacity & Load Performance

  • Capacity Range: Available in multiple heavy‑duty capacities — from 500 kg up to 10 tons and beyond, depending on model.
  • Resolution / Division: Designed for accuracy relative to capacity (e.g., ~0.5 kg for 1000 kg models, ~2 kg for 5000 kg models, ~5 kg for 10 000 kg).
  • Accuracy Class: Often meets industrial standards such as OIML Class III for reliable weight measurement.
  • Safe Overload: Scales typically support up to ~120 % of full‑scale rating without damage.
  • Ultimate Overload Tolerance: Some heavy‑duty models tolerate up to ~400 % of full scale in emergency conditions.

🖥️ Display & Readability

  • Display Type: Bright, backlit LED or LCD digital display with large digits for easy reading from a distance.
  • Units of Measurement: Switchable between kg and lb (pounds) depending on user preference.
  • Visibility: Designed so operators can read weights clearly even in dim lighting or outdoor job sites.

🧠 Weighing Functions

  • Tare / Net Weight: Allows deduction of hook or container weight for net results.
  • Zero / Auto‑Zero Tracking: Keeps the baseline stable before weighing.
  • Hold / Peak Hold: Locks the weight on screen once stable for easier recording.
  • Overload & Low Battery Alerts: Warns operators before capacity limits or power depletion.
  • Auto Power‑Off: Conserves battery when not in use.

🔋 Power & Battery

  • Rechargeable Battery: Long‑life rechargeable battery pack (often 6 V/4 Ah or similar) for cordless industrial use.
  • Battery Life: Typically offers > 80–100 hours of continuous use per charge.
  • Charger Included: Many units include a charger/adapter for easy recharging.

🛠️ Construction & Materials

  • Housing: Heavy‑duty aluminum alloy or cast metal housing built to withstand industrial environments.
  • Hook & Shackle: Reinforced high‑strength steel or alloy hooks with safety latches ensure secure load attachment.
  • Operating Temp. Range: Designed to work reliably in typical industrial temperature ranges (roughly ‑10 °C to +40 °C).
  • Portable: Though rugged, many heavy‑duty versions remain portable and easy to move between workstations.

📊 Typical Technical Overview (Examples)

Specification

Approx. Value / Feature

Capacity Range

500 kg to 10 000 kg (multi‑ton)

Display Type

Backlit LED / LCD

Units

kg / lb convertible

Functions

Tare, Zero, Hold, Unit Switch, Overload alert

Battery

Rechargeable (e.g., 6 V) with charger

Overload Safety

120% safe overload; up to 400% ultimate

Housing

Aluminum alloy / metal

Operating Temp.

~‑10 °C to +40 °C


🏭 Common Applications

Heavy‑duty digital crane weighing scales are used for:
✔ Factories & Manufacturing: Weigh machinery components and assemblies.
✔ Warehouses & Logistics: Ensure accurate freight and pallet loads before transport.
✔ Construction & Raw Materials: Weigh beams, rebar, concrete blocks and other heavy materials.
✔ Shipping Yards & Ports: Check container and cargo weights safely overhead.
✔ Metal & Scrap Yards: Weigh heavy bundles of steel and scrap loads.


📌 Why Choose a Heavy‑Duty Digital Crane Scale

  • Accurate Industrial‑Grade Weighing: Precision load cells deliver consistent results for heavy loads.
  • Enhanced Safety & Efficiency: Overload protection and tare functions reduce risk and improve workflow.
  • Durable & Reliable: Built to withstand harsh environments and heavy usage.
  • Portable Power: Battery operation allows flexible use without mains power.
  • Easy to Read & Operate: Backlit LED/LCD and smart functions simplify use across teams.



Available from Accurate Weighing Scales in Kampala, Uganda — your trusted supplier for scales supplier Uganda.
