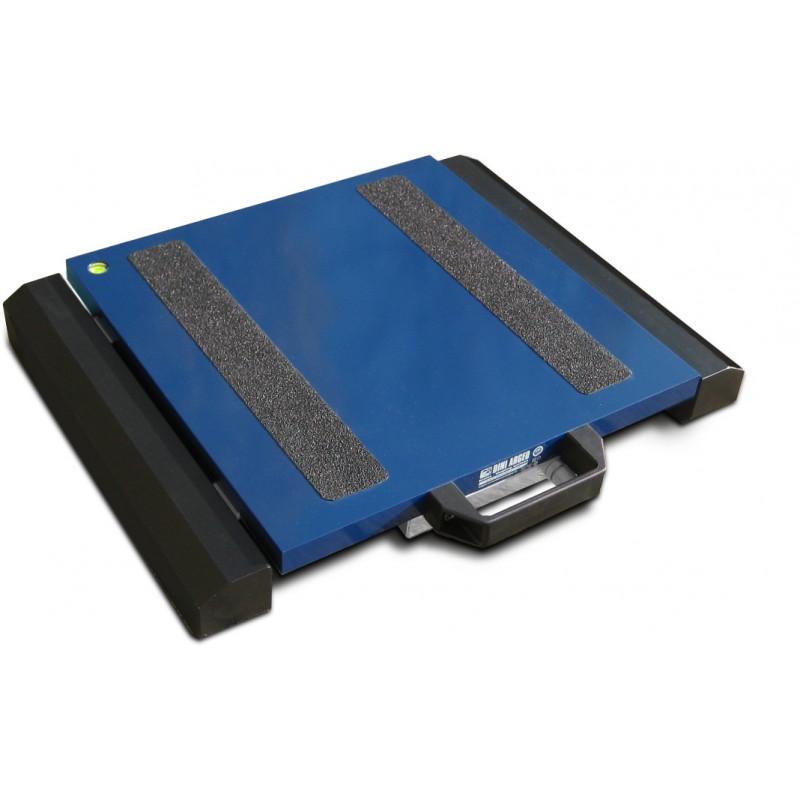

The Durable & Reliable Truck Axle Scales are heavy-duty weighing systems designed for accurate measurement of individual axle loads and total vehicle weight of trucks, trailers, and commercial vehicles. Built for tough industrial environments, these scales are widely used in logistics, construction, mining, agriculture, and road safety enforcement.
Engineered with high-precision load cell technology, the system ensures fast, stable, and accurate readings even under continuous heavy use. Its robust construction and portable or semi-permanent design options make it suitable for both fixed installations and field operations.
These axle scales help operators monitor load distribution, prevent overloading, reduce road damage risks, and ensure compliance with transport regulations. They are a cost-effective and efficient alternative to full-size weighbridges.
Key Features
- Heavy-duty truck axle weighing system
- High-precision digital load cell technology
- Measures axle load, wheel load, and total vehicle weight
- Suitable for trucks, trailers, and heavy commercial vehicles
- Durable steel/aluminum construction for harsh environments
- Anti-slip surface for safe vehicle positioning
- Portable or semi-permanent installation options
- Digital indicator with bright LCD/LED display
- Rechargeable battery and AC power operation
- Optional wireless data transmission system
- Overload protection for extended lifespan
- Fast setup and easy operation
Specifications
- Weighing Capacity: 10T – 40T per axle (customizable models available)
- Single Pad Capacity: 5T – 20T per pad
- Accuracy: ±0.1% to ±0.5% of full scale
- Display Type: LCD / LED digital indicator with backlight
- Platform Material: Heavy-duty steel / aluminum alloy
- Weighing Modes: Static and low-speed dynamic (optional)
- Pad Size: Approx. 400 × 500 mm to 800 × 450 mm
- Power Supply: AC 220V / 110V, 50/60Hz
- Battery: Rechargeable battery (6V/4Ah or lithium type depending on model)
- Battery Backup: 8–40 hours (usage dependent)
- Operating Temperature: -20°C to +60°C
- Communication Interface: RS232 / USB / Wireless RF (optional)
- Protection Rating: IP65 – IP68 (model dependent)
- Installation Type: Portable or semi-permanent
- Overload Capacity: Up to 120% of rated capacity
