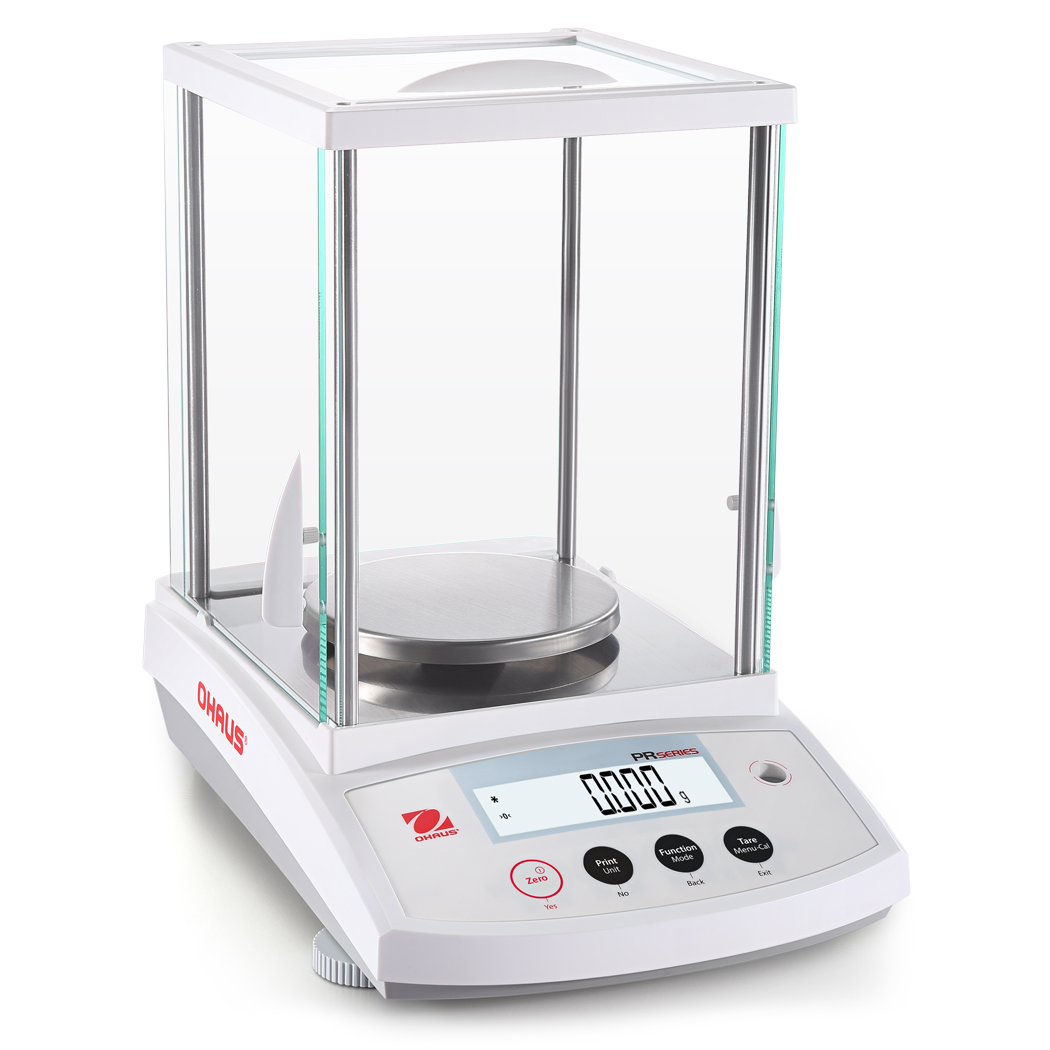

The Dual-Range Balance with Automatic Readout Switching is a versatile and high-precision weighing instrument designed to provide enhanced accuracy across multiple weighing ranges. This advanced balance automatically switches between measurement ranges, allowing users to achieve high-resolution readings for smaller samples while maintaining higher capacity for larger weighing tasks. It is ideal for laboratories, pharmaceutical applications, research facilities, educational institutions, and quality control environments.
Built with advanced electronic sensing technology, the dual-range balance ensures fast stabilization, excellent repeatability, and reliable measurement performance. The durable weighing platform supports safe handling of chemicals, powders, laboratory samples, and small components. The bright digital display ensures clear and precise readout of measurement values, while the user-friendly interface allows smooth and efficient operation. Its compact and sturdy design makes it suitable for laboratory bench-top applications.
Specifications
Weighing Type: Dual-Range Automatic Switching
Maximum Capacity:
· High Precision Range: 100 g – 200 g
· Extended Capacity Range: 200 g – 500 g (model dependent)
Readability / Resolution:
· High Precision Range: 0.001 g / 0.0001 g (model dependent)
· Extended Range: 0.01 g
Repeatability: ±0.001 g to ±0.0002 g (model dependent)
Linearity Error: ±0.002 g to ±0.0003 g
Display: LCD / LED Backlit Digital Display
Weighing Technology: High-precision electromagnetic or electronic sensor
Calibration: Internal / External Calibration (model dependent)
Weighing Units:
g, mg, ct, oz, gn, dwt (varies by configuration)
Stabilization Time: ≤ 3 seconds
Weighing Pan Material: Stainless Steel
Pan Size: Approx. 80 – 110 mm diameter
Draft Shield: Glass enclosure (available in analytical models)
Operating Temperature: 10°C – 30°C
Power Supply: AC Power Adapter
Housing Material: Metal base with high-strength ABS / aluminum body
Functions:
· Automatic Range Switching
· Tare / Zero Function
· Unit Conversion
· Counting Function
· Percentage Weighing
· Density Measurement (selected models)
· Overload Protection
· Stability Indicator
· Auto Calibration (selected models)
· RS232 / USB Interface (model dependent)
Dimensions: Approx. 280 × 190 × 290 mm (model dependent)
Net Weight: Approx. 4 – 7 kg
