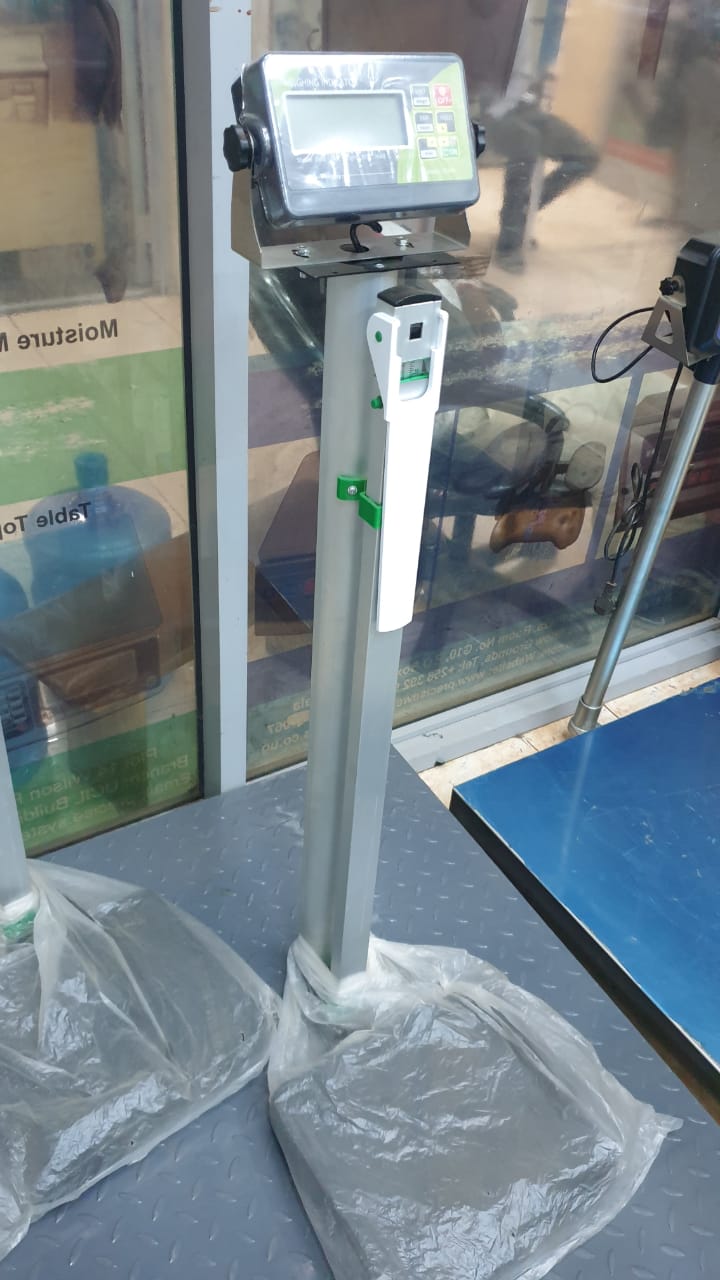

A Digital Medical Physician Scale with an Integrated Height Rod is the diagnostic standard for modern clinics. It streamlines patient intake by measuring weight and height simultaneously, then using those metrics to automatically calculate Body Mass Index (BMI).
The following specifications are based on industry-leading models like the Health o meter 500KL, Seca 703, and Detecto APEX.
1. Weighing Specifications
- Capacity: Standard clinical models range from 250 kg to 300 kg (550 lbs to 660 lbs) to accommodate bariatric patients.
- Resolution/Graduation: Typically 0.1 kg (0.2 lbs). Higher-precision models (like the Seca 703) offer 50g increments for patients under 150 kg.
- Platform: Low-profile (usually 2–3 inches high) with a non-skid rubber mat to prevent patient falls.
- Display: Eye-level LCD or LED (often 1-inch digits) for easy reading by the practitioner.
2. Height Measurement (Stadiometer)
- Type: Can be Digital (integrated sensors) or Mechanical (manual sliding rod).
- Measuring Range:
- Mechanical: 60 cm – 213 cm (24" – 84").
- Digital/Sonar: 60 cm – 218 cm (24" – 86").
- Graduation: 1 mm or 1/8 inch.
- Technology: Premium models (like Detecto ICON) use sonar/ultrasonic sensors for "touchless" height measurement.
3. Advanced Software Functions
- Auto-BMI: Once height is locked and weight is stabilized, the scale instantly calculates and displays BMI.
- Hold/Release: Freezes the weight on the screen, allowing the patient to step off while the physician records the data.
- Tare/Pre-Tare: Deducts the weight of clothing, shoes, or a prosthetic.
- Mother/Child Function: Allows a caregiver to be weighed with an infant, then deducts the adult's weight to show the baby's weight.
- Everlock®: A safety feature on some models that permanently locks the scale into either Kilograms or Pounds to prevent dosing errors.
4. Connectivity & Power
- EMR Integration: Most scales feature USB, Serial, or Wireless (Wi-Fi/Bluetooth) ports to transmit data directly into Electronic Medical Record systems (HL7 compliant).
- Power Source: Usually "Dual Power"—runs on 6–12 AA batteries for portability or an AC adapter for stationary clinic use.
- Portability: Equipped with two heavy-duty rear wheels for easy "tilt-and-roll" movement between exam rooms.
Summary Comparison Table
|
Feature |
Health o meter 500KL |
Seca 703 |
Detecto ICON |
|
Max Capacity |
300 kg (660 lbs) |
300 kg (660 lbs) |
450 kg (1,000 lbs) |
|
Height Rod |
Mechanical Inline |
Mechanical (Optional Digital) |
Touchless Sonar |
|
BMI Calculation |
Manual Height Entry |
Automatic |
Automatic |
|
Best For |
General Practice |
Specialized Clinical / EMR |
High-Volume Hospitals |
