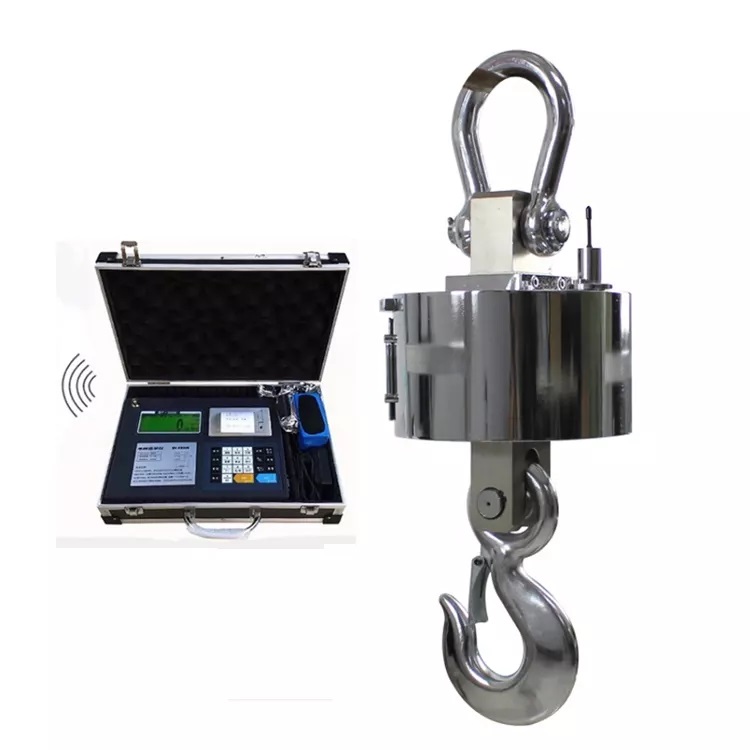

A Digital Hanging Crane Scale is an industrial weighing instrument designed to be hung from a crane, hoist, beam, or overhead hook to measure the weight of suspended objects such as pallets, machinery parts, bulk goods, and structural components. Digital crane scales offer precise digital readouts, smart weighing functions, and portable operation, making them ideal for warehouses, factories, logistics, construction, and material‑handling environments.
⚖️ Capacity & Accuracy
- Capacity Range: Available across a wide range depending on model — typically 100 kg to 10,000 kg or more.
- Resolution / Accuracy: Digital load cells offer high precision (e.g., ±0.1 % of full scale on lighter models such as 300 kg).
- Units of Measurement: kg and lb are standard; some models also support newtons (N) or additional unit types.
🖥️ Display & User Interface
- Digital Display: Large LED or backlit LCD screen for clear visibility — often readable from a distance.
- Unit Conversion: Easy switch between kg, lb, and sometimes N.
- Some models include remote control for safer operation from the ground.
🧠 Weighing & Smart Functions
Typical digital hanging crane scales include useful features to improve usability and accuracy:
✔ Tare Function — subtracts container or sling weight.
✔ Zero / Auto‑Zero Tracking — maintains a stable baseline for accurate weighing.
✔ Hold / Peak Hold — locks weight reading for easy reading and recording.
✔ Overload Alarm / Protection — warns if load exceeds safe capacity.
✔ Auto Power‑Off / Battery Save — conserves battery life during idle periods.
🔋 Power & Battery
- Battery Powered: Commonly uses rechargeable battery packs (e.g., 6 V / 4 Ah) or standard replaceable batteries.
- Battery Life: Many models offer >80 hours of continuous use per charge.
- Low Battery Indicator: Alerts user when battery needs recharge or replacement.
🛠️ Construction & Durability
- Body Material: Heavy‑duty metal, aluminum alloy, or ABS housing for industrial strength and durability.
- Hook & Shackle: Reinforced steel or stainless steel hooks and shackles with safety latches for secure load attachment.
- Operating Temperature: Typically reliable across –10 °C to +40 °C operating conditions.
📊 Typical Technical Snapshot (Example)
|
Feature |
Typical Specification |
|
Weight Capacity |
100 kg – 10,000 kg+ (varies by model) |
|
Resolution / Accuracy |
High‑precision digital load cell (e.g., ±0.1 % F.S.) |
|
Display |
Large LED / backlit LCD screen |
|
Units |
kg / lb (switchable) |
|
Tare / Zero |
Yes |
|
Overload Alarm |
Yes |
|
Power |
Rechargeable battery / replaceable cells |
|
Battery Life |
>80 h typical |
|
Material |
Metal / aluminum alloy / ABS |
|
Operating Temp. |
–10 °C to +40 °C |
🏭 Common Applications
Digital hanging crane scales are widely used in:
- Warehouses & Logistics: Weighing pallets, bulk shipments, and inventory.
- Factories & Manufacturing: Checking weight of machinery parts and raw materials.
- Construction Sites: Overhead measurement of beams, materials, and loads.
- Agriculture & Wholesale Markets: Weighing sacks, produce, and heavy bundles.
- Shipping & Ports: Verifying freight weight before transport.
📌 Benefits
- Accurate Digital Weighing: Better precision than mechanical hook scales.
- Portable & Easy to Use: Battery operation means it can be used anywhere overhead.
- Smart Features: Tare, unit switching, overload alerts enhance safety and efficiency.
- Clear, Easy Readout: Large LED/LCD displays for quick interpretation.
