500kg platform scales represent the mid-range "sweet spot" of industrial weighing—compact enough to be portable but robust enough to handle heavy drums, oversized boxes, and scrap metal.
For this capacity, you have three primary categories to choose from: Digital Bench/Floor Hybrid, Heavy-Duty Floor Platforms, and Traditional Mechanical models.
1. Top-Rated Digital 500kg Models (2026)
These are the current industry leaders, known for their balance of accuracy and structural warranty.
|
Brand & Model |
Platform Size |
Key Feature |
Warranty |
|
Adam Equipment GFK 600 |
$600 \times 800\text{mm}$ |
Full keypad for unit weight entry (Counting). |
2 Years |
|
Ohaus Defender 3000 |
$650 \times 500\text{mm}$ |
IP65 washdown indicator; very popular in shipping. |
2 Years |
|
A&D HW-C Series |
$390 \times 530\text{mm}$ |
High-speed response (settles in <1.5s). |
1-2 Years |
|
HiWEIGH BSX |
$450 \times 600\text{mm}$ |
304 Stainless Steel; excellent for food/chemical. |
12 Months |
2. Structural "Robustness" Standards
At the 500kg limit, "quality" is determined by the frame's ability to resist torsion (twisting).

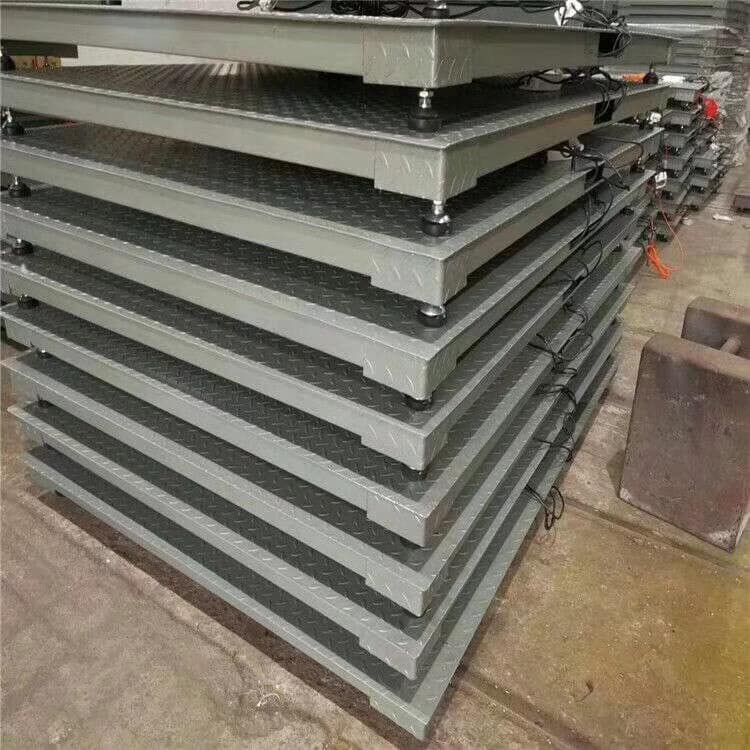

- The Deck: Look for a $4\text{mm}$ to $5\text{mm}$ thick checkered steel plate. Thin platforms ($2\text{mm} - 3\text{mm}$) will "bow" in the middle after a few months of 400kg+ loading.
- The Frame: Professional 500kg scales use a tubular steel frame or a cast-aluminum base. Avoid plastic bases for this weight capacity.
- Load Cells: High-quality units use OIML-approved aluminum or steel load cells (like those from Zemic or Keli). These ensure the scale remains accurate even if the weight is placed in a corner rather than the center.
3. Mechanical Steelyard 500kg Options
If you need a scale that works without power or in hazardous (explosive) areas:
- Avery Style SP-500: A legendary cast-iron build. It uses a manual sliding brass poise. It is virtually indestructible but requires manual reading.
- Platform Size: Typically $600 \times 600\text{mm}$ or $750 \times 750\text{mm}$.
- Wheels: Heavy-duty mechanical models usually come with cast-iron wheels for easy relocation across warehouse floors.
4. 2026 Pricing Benchmarks (500kg Capacity)
- Economy Digital (China Import): $150 – $300. Best for light internal checking.
- Commercial Grade (Ohaus/Adam): $600 – $900. Recommended for daily shipping/receiving.
- Premium Washdown (Stainless Steel): $1,200 – $1,800. Mandatory for food processing or wet environments.
- Heavy Mechanical (Alexandra/Avery): $450 – $750. Ideal for remote areas or scrap yards.
5. Critical 2026 Buyer’s Checklist
- Overload Protection: Ensure the scale has "overload stops"—physical bolts that prevent the load cell from being crushed if a 700kg weight is accidentally dropped on it.
- Display Type: LED (Bright Red) is best for dark warehouses; LCD (Black text) is best for outdoor use in direct sunlight.
- Leveling: At 500kg, even a slight tilt can cause a $5\text{kg} - 10\text{kg}$ error. Ensure the scale has adjustable rubber feet and a built-in spirit level bubble.
