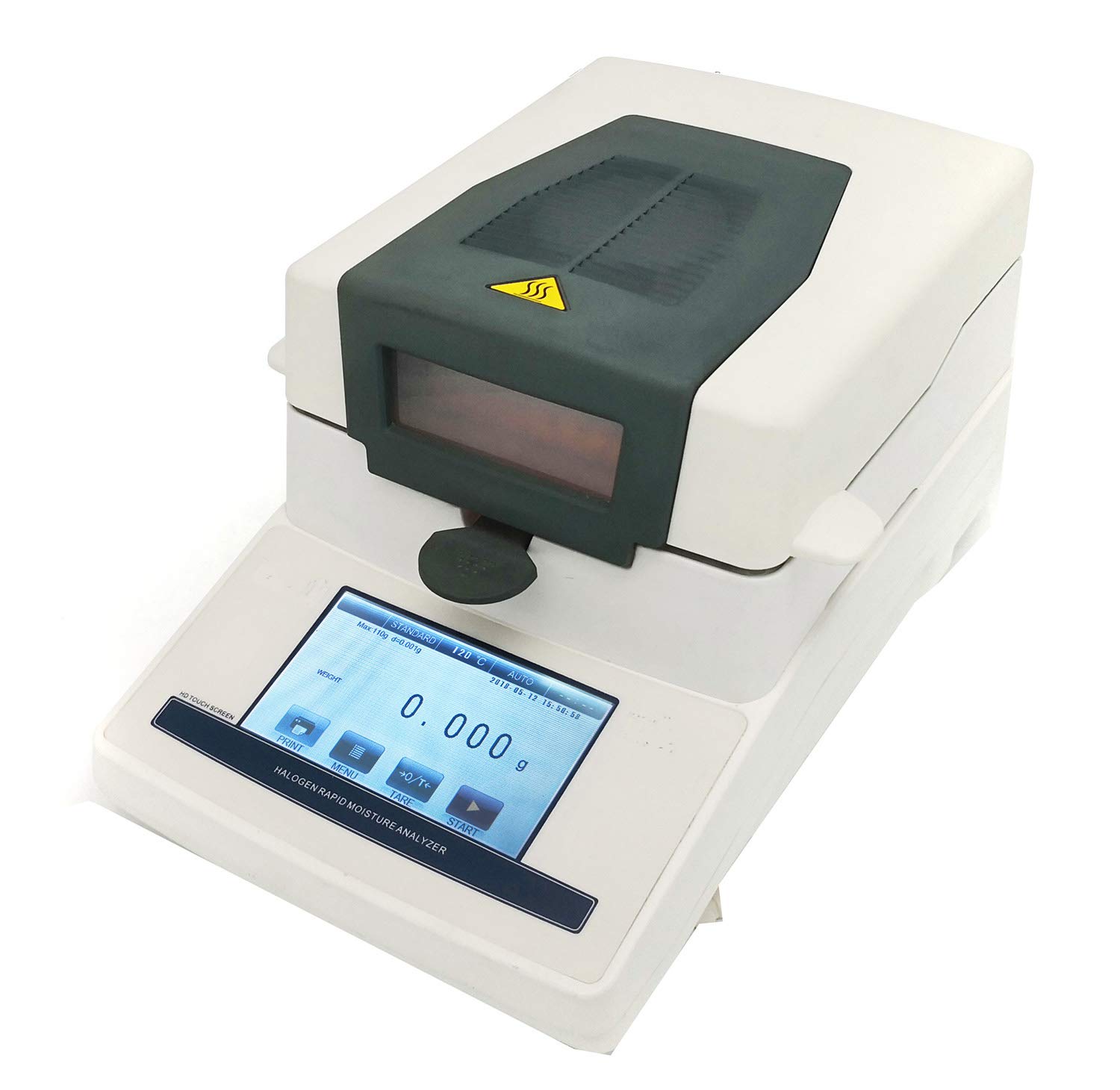

The Comprehensive Benchtop Moisture Analyser is a precision laboratory instrument designed for accurate, fast, and repeatable moisture content determination using controlled heat and weight loss measurement. This benchtop analyser combines a high‑resolution balance, adjustable heating system (typically halogen or infrared), and an intuitive user interface to provide moisture, dry mass, and moisture profile results quickly and reliably.
Ideal for quality control, product development, and routine analysis in food and beverage, pharmaceutical, agriculture, chemicals, cosmetics, and materials science laboratories, the analyser automates the drying process and continuously tracks weight loss as moisture evaporates — delivering detailed moisture percentages without the time‑consuming steps of traditional oven methods.
Its benchtop form factor is compact yet rugged, with stainless steel components and easy‑to‑clean sample pans. A clear digital or touchscreen display shows real‑time data and drying curves, while built‑in memory and connectivity options (e.g., USB/RS‑232) support data export and reporting.
⭐ Key Features
· 🔍 High‑Precision Moisture Measurement: Calculates moisture content as a percentage of initial sample weight using thermogravimetric principles.
· 🔥 Adjustable Heating System: Halogen or infrared heating for rapid, uniform drying and precise temperature control.
· 📊 Real‑Time Display: Digital or touchscreen interface showing moisture %, weight, time, temperature, and drying curve.
· 📦 Automated & Custom Drying Profiles: Set temperature, time, and auto‑stop criteria for consistent measurements.
· 💾 Data Logging & Connectivity: Store results and transfer via USB or RS‑232 to computers or printers.
· 🧪 Wide Application Range: Suitable for food products, polymers, pharmaceuticals, chemicals, cosmetics, soils, and more.
· 🧼 Durable Construction: Stainless steel chamber and easy‑clean sample pans for long‑term use.
⚙️ Typical Specifications
|
Parameter |
Typical Specification |
|
Weighing Capacity |
~50 g – 210 g (model dependent) |
|
Readability / Resolution |
0.0001 g – 0.01 g depending on model |
|
Moisture Range |
0 % – 100 % |
|
Temperature Range |
~40 °C – 230 °C (adjustable) |
|
Heating Type |
Halogen or infrared heat source |
|
Display |
LCD or Touchscreen graphical display |
|
Data Storage |
Internal memory for test results (varies by model) |
|
Connectivity |
USB, RS‑232 for PC/printer connection |
|
Auto Stop Function |
Yes (based on moisture change threshold) |
|
Operating Temperature |
~5 °C – 35 °C environmental range |
|
Sample Pan Size |
Typically ~90 mm – 100 mm diameter |
|
Dimensions / Weight |
~400 × 350 × 350 mm / ~7.5 – 10 kg |
