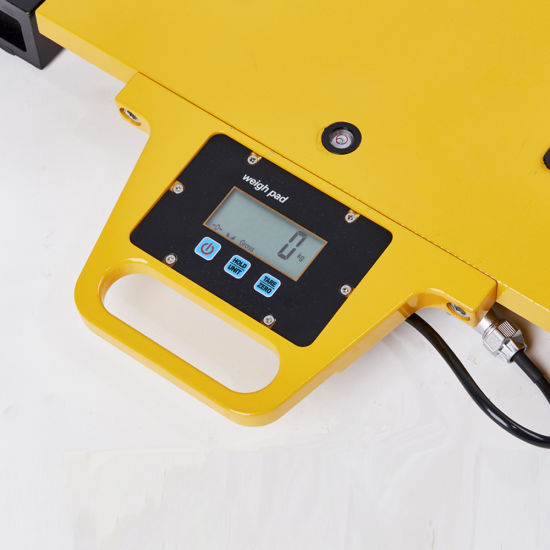

The Axle Scale Weighing Bridge Truck Scale is a heavy-duty industrial weighing system designed for accurate measurement of trucks, trailers, and other large commercial vehicles. Built with a rugged steel structure and high-capacity load cells, it ensures reliable axle-by-axle or full-vehicle weighing in demanding environments such as logistics hubs, factories, mines, construction sites, and border checkpoints.
This system is engineered to deliver precise weight data while withstanding continuous heavy loads and harsh outdoor conditions. It can be installed as a pit-mounted or surface-mounted bridge scale, allowing vehicles to drive over the platform safely while capturing real-time weight distribution per axle or total gross weight.
The Axle Scale helps businesses comply with road safety regulations, prevent overloading fines, and improve transport efficiency through accurate load management.
⚙️ Key Features
- Heavy-duty steel bridge structure for maximum durability
- High-capacity load cells for precise axle and gross weighing
- Suitable for dynamic or static vehicle weighing
- Anti-corrosion and weather-resistant design
- Digital indicator with easy-to-read display
- Overload protection for system safety
- Modular platform design for easy installation and maintenance
- Optional axle detection and data logging system
- Compatible with printers, computers, and management software
- Suitable for outdoor industrial environments
📊 Technical Specifications
|
Parameter |
Specification |
|
Weighing Capacity |
30 tons – 150 tons (customizable) |
|
Platform Length |
6 m – 24 m (depending on truck type) |
|
Platform Width |
3 m – 4 m |
|
Accuracy Class |
OIML C3 / C4 (industrial grade) |
|
Division (Readability) |
10 kg – 50 kg |
|
Load Cells Type |
Digital or analog shear beam / compression load cells |
|
Material |
Heavy-duty steel / reinforced concrete deck (optional) |
|
Installation Type |
Pit-mounted or surface-mounted |
|
Display Unit |
Digital weight indicator with LCD/LED |
|
Power Supply |
AC 220–240V / backup battery or UPS support |
|
Operating Temperature |
-20°C to +60°C |
|
Protection Rating |
IP65 – IP68 (load cells and junction box) |
|
Connectivity |
RS232 / USB / wireless (optional) |
|
Functions |
Tare, Gross/Net weight, axle weighing, data storage |
|
Software Support |
Truck weighing management system (optional) |
🧾 Applications
- Logistics and transport companies
- Mining and quarry operations
- Construction and infrastructure projects
- Manufacturing and industrial plants
- Agricultural bulk commodity transport
- Border control and highway checkpoints
- Waste management facilities
