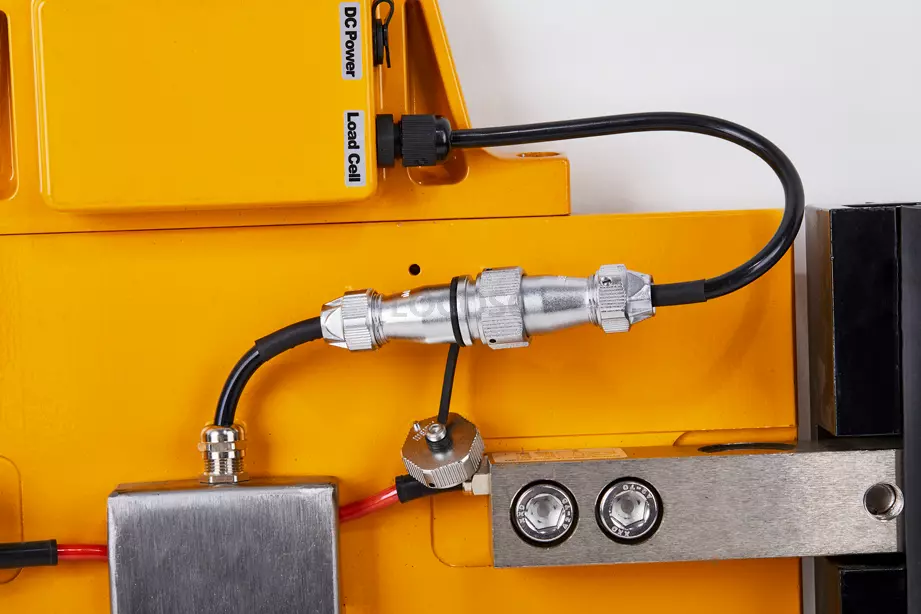

Axle Pad Scales (Wheel Weighers) are advanced portable weighing systems designed for accurate measurement of axle loads and individual wheel weights of vehicles. They are widely used in transport, logistics, agriculture, mining, and industrial operations to ensure legal compliance with load limits and to prevent overloading.
The system typically consists of high-strength aluminum or steel weighing pads placed under each wheel or axle, connected to a digital indicator that calculates precise weight readings. With both static and optional dynamic weighing modes, axle pad scales offer fast, reliable, and field-ready performance.
These wheel weighers are portable, easy to install, and suitable for on-site weighing without the need for permanent infrastructure like a weighbridge. They are ideal for fleet operators who need quick weight checks at loading points, depots, or remote locations.
Key Features
- Portable axle and wheel weighing system
- High-precision load cell technology for accurate readings
- Measures axle weight, wheel weight, and total vehicle weight
- Suitable for static and (optional) dynamic weighing
- Heavy-duty aluminum/steel construction for harsh environments
- Anti-slip, low-profile design for safe vehicle access
- Wireless or wired digital indicator options
- Rechargeable battery-powered operation
- Overload protection for enhanced durability
- Easy setup on flat surfaces within minutes
Specifications
- Model Type: Axle Pad Scale / Wheel Weigher
- Weighing Capacity: 10T – 40T per axle (varies by configuration)
- Pad Capacity: Typically 5T – 20T per pad
- Accuracy: ±0.1% to ±0.5% of applied load (model dependent)
- Display Type: LCD/LED digital indicator with backlight
- Platform Material: Aluminum alloy / carbon steel
- Pad Size: Approx. 300 × 400 mm to 800 × 450 mm (varies by model)
- Weighing Modes: Static / Dynamic (low-speed motion weighing)
- Power Supply: AC 220V / rechargeable battery system
- Battery Backup: 8–40 hours depending on model
- Operating Temperature: -20°C to 60°C
- Communication: Wireless RF / RS232 / USB output (model dependent)
- Protection Rating: IP65 – IP68 (dust and water resistant)
- Installation: Portable, no permanent foundation required
Applications
- Transport and logistics fleet weighing
- Roadside vehicle inspection stations
- Mining and construction vehicles
- Agricultural trucks and trailers
- Warehouse and distribution centers
Compliance and overload checking
