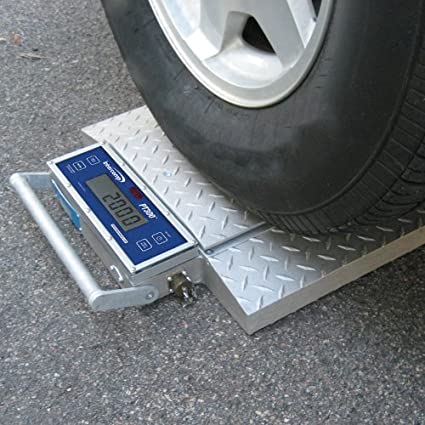

The Axle Load Scale Vehicle Detection Equipment is a heavy-duty weighing system designed to measure the weight of vehicle axles with high precision. It is widely used in transport inspection stations, highways, logistics centers, border control points, and industrial weighing facilities to ensure vehicles comply with legal load limits.
This system helps prevent overloading, protects road infrastructure, and improves traffic safety by accurately measuring the load carried by each axle or axle group. Built with industrial-grade load cells and reinforced platforms, the equipment delivers reliable performance even under continuous heavy vehicle traffic.
The axle load scale can be installed as a portable or fixed system depending on operational needs. It provides fast weighing results, allowing vehicles to be checked without significant delays in movement.
⚙️ Specifications
|
Feature |
Details |
|
Type |
Axle Load Scale / Vehicle Detection Weighing System |
|
Application |
Truck axle weighing, vehicle load inspection |
|
Weighing Method |
Static or dynamic axle weighing (model dependent) |
|
Capacity per Axle |
5 tons – 30 tons (or higher depending on model) |
|
Total System Capacity |
Up to 100 tons+ (multi-axle support) |
|
Accuracy Class |
OIML approved (±0.5% to ±1%) |
|
Platform Material |
Heavy-duty steel / reinforced alloy |
|
Load Cells |
High-precision industrial load cells |
|
Display Unit |
Digital indicator with LCD/LED screen |
|
Data Output |
RS232 / USB / Wireless (optional) |
|
Power Supply |
AC 220V / 110V or solar option (optional) |
|
Operating Temperature |
-30°C to +70°C |
|
Installation Type |
Portable or pit-mounted fixed installation |
|
Weighing Speed |
Fast axle-by-axle measurement (3–10 seconds per axle) |
|
Protection Rating |
IP66/IP67 load cells (model dependent) |
|
Connectivity (Optional) |
Software integration for data logging and reporting |
🔑 Key Features
- High-capacity weighing for heavy-duty vehicles
- Accurate axle-by-axle weight detection
- Supports static and dynamic weighing modes
- Durable steel platform designed for harsh environments
- Fast weighing process to reduce traffic delays
- Overload protection for infrastructure safety
- Optional data recording and reporting system
- Suitable for roadside enforcement and logistics operations
🚛 Applications
- Highway and road safety inspection stations
- Customs and border control checkpoints
- Logistics and freight companies
- Industrial loading yards and ports
- Construction and mining vehicle monitoring
Transport regulatory authorities
