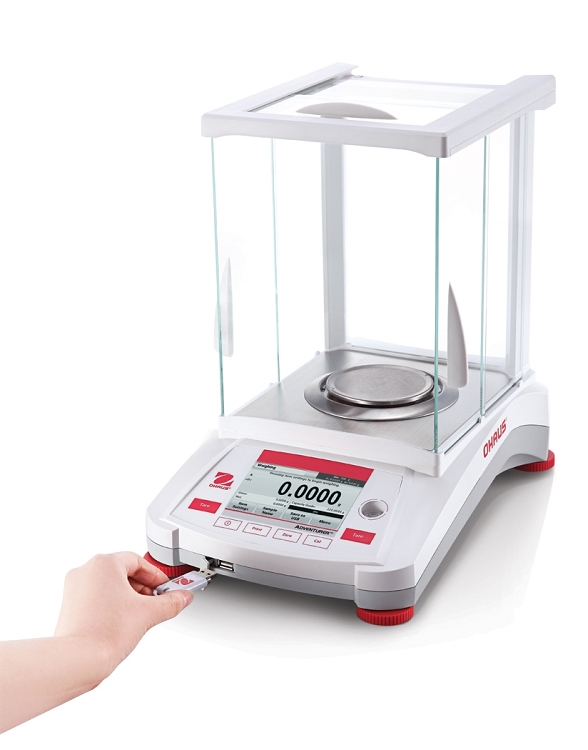

The Analytical Balance with Glass External Walls is a high-precision weighing instrument designed for laboratory, pharmaceutical, research, and quality control applications requiring extremely accurate and reliable measurements. Engineered with advanced electromagnetic force restoration technology, this analytical balance delivers exceptional sensitivity, rapid stabilization, and consistent performance when weighing minute and sensitive samples.
The balance is equipped with high-quality glass external walls (draft shield enclosure) that effectively protect the weighing process from environmental disturbances such as air currents, dust, and vibrations. This design ensures stable and repeatable measurement results. The instrument features a bright digital display, user-friendly control panel, and intelligent calibration system, making it suitable for routine analytical procedures and advanced laboratory testing.
Specifications
Maximum Capacity: 120 g – 320 g (model dependent)
Readability / Resolution: 0.0001 g (0.1 mg)
Repeatability: ±0.0002 g
Linearity Error: ±0.0003 g
Weighing Technology: Electromagnetic Force Restoration Sensor
Display: LCD Backlit Digital Display
Calibration: Internal or External Calibration (model dependent)
Weighing Units:
g, mg, ct, oz, dwt, GN (varies by model)
Stabilization Time: ≤ 2 – 3 seconds
Pan Size: Approx. 80 – 90 mm diameter
Enclosure: Glass external wall draft shield with sliding doors for environmental protection
Operating Temperature: 15°C – 25°C
Power Supply: AC Adapter (110V / 220V, 50/60 Hz)
Housing Material: High-quality ABS body with stainless steel weighing pan
Functions:
- Tare / Zero Tracking
- Unit Conversion
- Counting Function
- Percentage Weighing
- Density Measurement (optional depending on model)
- Overload Protection
- Stability Indicator
- Auto Calibration
- Data Communication Interface (Optional RS232 / USB)
Dimensions: Approx. 350 × 215 × 340 mm
Net Weight: Approx. 6 – 8 kg
