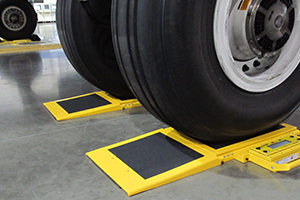

Road Axle Truck Scales are heavy-duty portable or semi-portable weighing systems designed to accurately measure the axle loads and total weight of heavy-duty trucks, trailers, buses, and industrial transport vehicles.
These systems are widely used in transport enforcement, logistics yards, construction sites, mining operations, and border control stations to ensure vehicles comply with road weight regulations and to prevent overloading damage to roads and bridges.
The system works by placing each axle of the vehicle onto high-strength weighing platforms. Each axle is weighed individually, and the system automatically calculates the total gross vehicle weight. Depending on the model, weighing can be performed in static mode (stationary vehicles) or dynamic mode (low-speed drive-over weighing).
Built with industrial-grade materials and precision load cell technology, road axle scales provide fast, reliable, and repeatable measurements even in harsh outdoor environments.
Key Features
- Portable or semi-permanent axle weighing system
- High-precision strain gauge load cells
- Measures individual axle load and total vehicle weight
- Suitable for heavy trucks, trailers, and buses
- Available in static and dynamic weighing modes
- Rugged steel or aluminum platform construction
- Anti-slip surface for safe vehicle positioning
- Waterproof and dustproof industrial load cells (IP67–IP68)
- Rechargeable battery and AC power operation
- Digital indicator with LCD/LED display
- Optional wireless data transmission and printer support
- Overload and fault detection alarms
Technical Specifications
Weighing Capacity
- Per axle capacity: 10,000 kg – 20,000 kg (model dependent)
- Total system capacity: Up to 40–120 tons (multi-axle configuration)
- Accuracy (Static): ±0.1% to ±0.5% of full scale
- Accuracy (Dynamic): ±1% to ±3% (low-speed weighing systems)
- Minimum division: 1 kg – 20 kg
Weighing Platform
- Material: High-strength aluminum alloy or reinforced steel
- Design: Low-profile portable axle pads or platform decks
- Surface: Anti-slip textured or rubberized top plate
- Height: Approx. 30 mm – 60 mm
- Structure: Reinforced frame for heavy-duty truck loads
- Portability: Built-in handles or lifting eyes for transport
Load Cells
- Type: Strain gauge compression load cells
- Protection rating: IP67 / IP68 waterproof and dustproof
- Material: Alloy steel or stainless steel
- Overload capacity: 120% – 150% of rated capacity
- Configuration: Multi-load cell per platform system
Indicator System
- Digital LCD or LED display with backlight
- Functions: Tare, Zero, Hold, Total weight calculation
- Unit conversion: kg / lb / ton
- Data storage and optional printing
- Overload alarm and low battery indicator
- Optional wireless communication module
Power Supply
- Rechargeable battery (up to 16–100 hours depending on model)
- AC adapter (110V / 220V compatible)
- Energy-saving auto shut-off function
Operating Conditions
- Temperature range: -10°C to 50°C
- Environment: Outdoor and industrial use
- Protection level: IP65–IP68 system rating
- Surface requirement: Flat, compacted ground recommended for accuracy
System Configuration
- 2–4 axle weighing pads (expandable systems available)
- 1 digital indicator unit
- Cable or wireless connection system
- Optional printer and PC software integration
