the market for 500kg livestock scale indicators has moved toward Bluetooth-connected "Smart" indicators that sync directly with smartphone apps.
If you are looking for an electronic indicator to pair with your cattle or sheep floor scale, here are the top industry-standard choices and their specific cattle-grade features.
1. Top Recommended Indicators (500kg x 0.1kg)
|
Model |
Grade |
Key Feature |
Best For |
|
Gallagher W-0 |
Entry-Level |
Bluetooth app integration |
Small-scale goat & sheep farms. |
|
Tru-Test S3 |
Professional |
Superdamp™ III filtering |
Active cattle that won't stand still. |
|
Thunderbird T20 |
Rugged |
30-hour Lithium battery |
Remote farms without AC power. |
|
Rice Lake 380 |
Industrial |
Synergy LCD (High visibility) |
High-volume sorting and weighing. |
2. Cattle-Specific Indicator Features
Unlike a standard industrial scale, a cattle indicator requires Livestock Software to function correctly:
- Dynamic Weighing (Animal Hold): Standard scales jump around when an animal moves. Livestock indicators take 50–100 samples per second and calculate a stable average, then "lock" that weight on the screen.
- Auto-Zero / Environmental Filtering: If mud, manure, or straw builds up on the floor, the indicator should automatically "zero out" that extra weight between animals.
- Flight Zone Safety: High-contrast, backlit displays are essential so you can read the weight from a distance without getting too close to a stressed animal.
- RS232 / USB Connectivity: Essential if you want to print weight tickets or export data to a farm management PC.

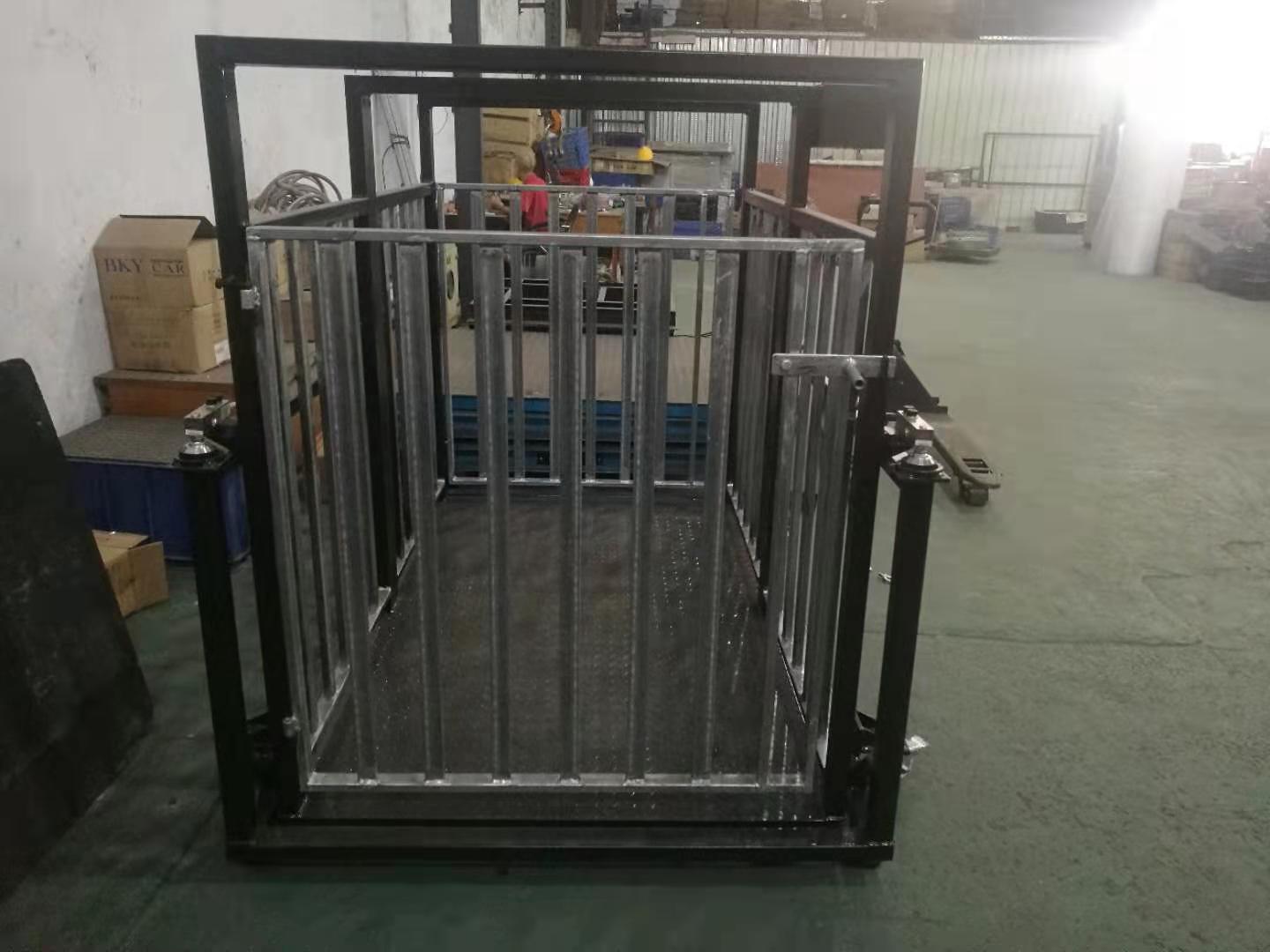

3. Floor Scale & Fence Compatibility
When choosing an indicator for a floor scale, ensure your wiring matches the load cells. Most modern indicators use a 4-pin or 5-pin M12 quick-connect or a DB9 serial connector.
Fence Specifications for Floor Scales:
- The "Rub" Rule: The most common cause of error is the fence touching a stationary object. The cage must be bolted only to the scale platform. There should be a 25mm (1 inch) gap between the scale fence and the leading race/chute.
- Cabling: Cattle will chew or step on wires. Use braided stainless steel conduits for all cables running from the floor load cells to the indicator.
- Indicator Mounting: Mount the indicator at shoulder height (approx. 1.5m) on a swivel bracket. This keeps it out of the "kick zone" and away from animal waste.
4. Calibration for 0.1kg Accuracy
To maintain 0.1kg precision on a 500kg scale, follow these steps:
- Zero-Point Calibration: Ensure the platform is clean and hit "Zero" or "Tare."
- Span Calibration: You must use a Certified Weight. If you don't have one, a 20L water jug (exactly 20kg) can work for a quick field check, but a 100kg+ certified block is recommended for 500kg scales.
- Linearity Check: Place the weight in each of the four corners. If the weight changes (e.g., 100.1kg in one corner and 99.8kg in another), your floor is uneven or a load cell is failing.
