A 60-ton portable truck weighing system (portable axle weight scale) is a lightweight, high-precision weighing solution designed to measure individual axle loads or full vehicle weight for trucks, trailers, buses, and heavy-duty vehicles.
It is commonly used in roadside inspections, logistics checkpoints, mining sites, construction projects, and mobile enforcement operations where fast setup, portability, and accuracy are essential.

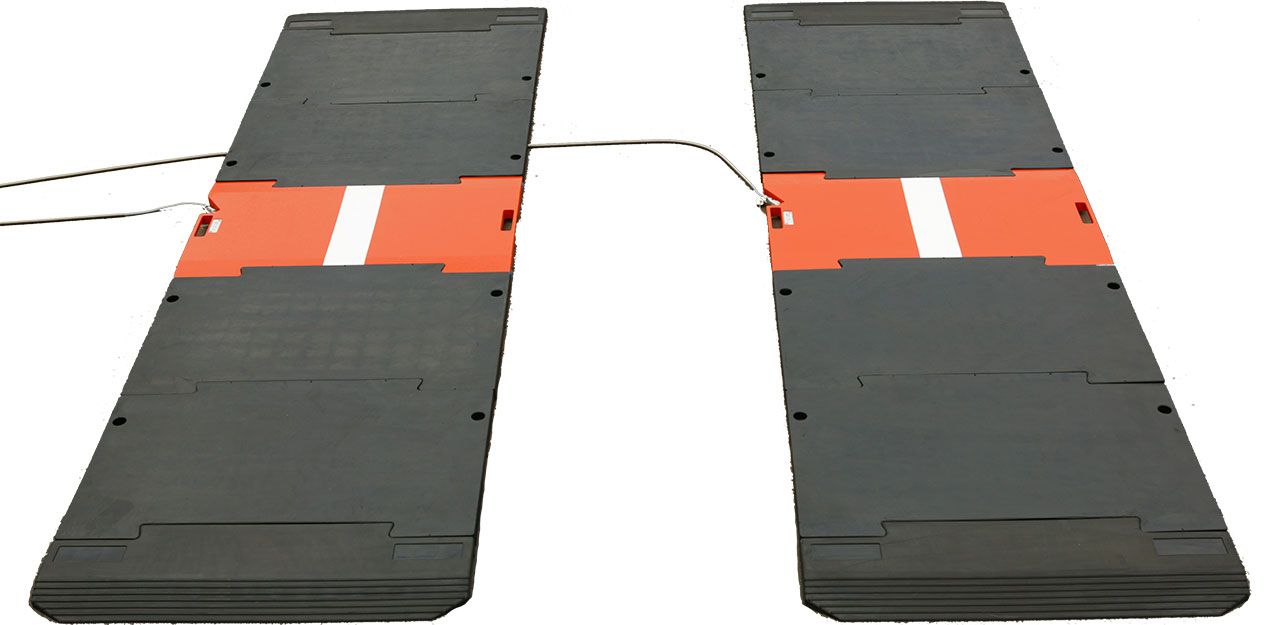

The system consists of portable weigh pads or platforms that can be easily deployed on flat ground without permanent installation. Vehicles drive slowly over the pads, allowing each axle to be measured individually, enabling accurate total weight calculation and load distribution analysis.
Key Features
- High capacity up to 60 tons total vehicle weight
- Portable and lightweight design for easy transport
- Quick setup (typically within 10–20 minutes)
- Suitable for axle-by-axle or full vehicle weighing
- High-precision strain gauge load cells
- Non-permanent installation (no foundation required)
- Rechargeable or AC-powered operation
- Strong aluminum alloy or steel platform construction
- Anti-slip surface for vehicle safety
- Digital indicator with clear LCD display
Technical Specifications
1. Weighing Capacity
- Maximum Capacity: 60 tons (60,000 kg)
- Axle Load Capacity: Typically 10–20 tons per axle (depending on model)
- Accuracy: ±0.5% to ±1% (field conditions dependent)
2. Platform / Weigh Pad
- Type: Portable axle weighing pads or platform scales
- Material: High-strength aluminum alloy / steel
- Surface: Anti-slip industrial coating
- Design: Modular pads (2–4 pads per system)
- Dimensions per pad: Approx. 700–900 mm width (varies by model)
3. Load Cells
- Type: High-precision strain gauge load cells
- Protection Rating: IP67–IP68 (water and dust resistant)
- Construction: Sealed aluminum/stainless steel housing
- Calibration: Factory calibrated, field adjustable
4. Indicator System
- Display: LCD or LED digital indicator
- Power Supply: Rechargeable battery (8–20 hours operation)
- Charging: AC 220V / 110V adapter
- Functions:
- Total weight calculation
- Axle weight display
- Overload warning
- Data storage (optional)
5. Operating Conditions
- Working Temperature: -20°C to +60°C
- Humidity Resistance: Up to 90% RH non-condensing
- Operating Surface: Flat, stable ground required
6. Mobility & Setup
- Portability: High (carried and deployed by 1–2 people per pad)
- Installation Time: 10–20 minutes
- Transport: Carry case or rugged storage box included
- Relocation: Fully mobile, no civil works required
7. Optional Features
- Wireless data transmission (Bluetooth / RF / Wi-Fi)
- Printer for weight tickets
- Vehicle identification system integration
- Solar charging kit for remote use
- Cloud-based data management system
